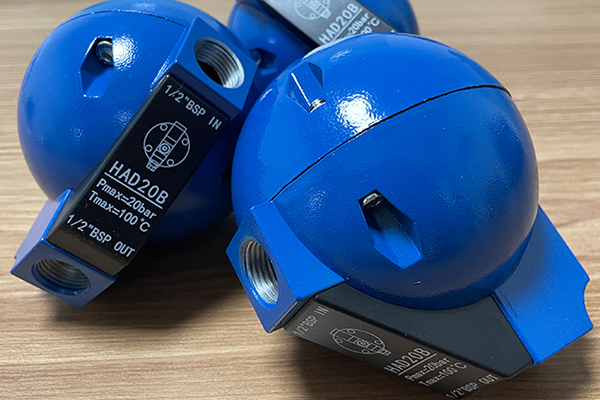

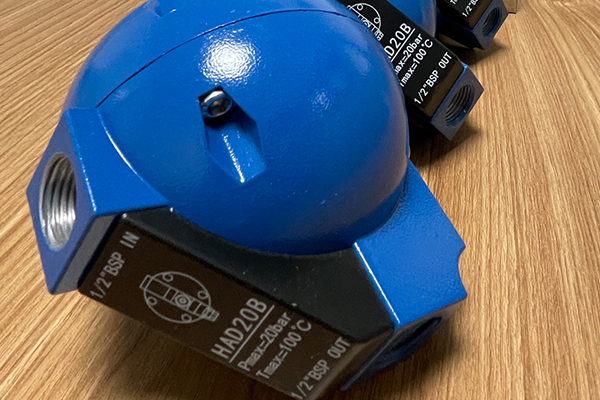

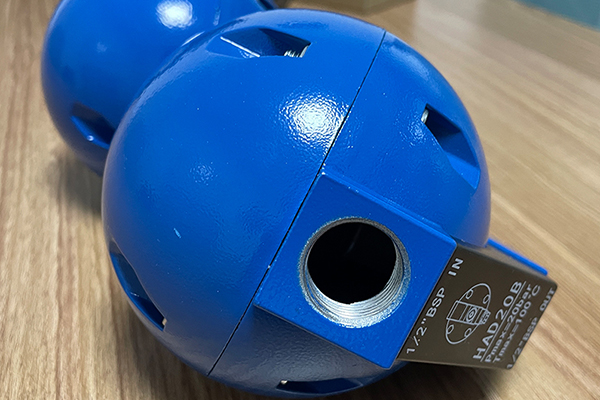

Ball automatic drain valve Air compressor tank drain

The air-compressed automatic drain valve uses the air pressure of the air-compressed system itself and is connected via a conduit. The pressure relief valve at the top can adjust the slight exhaust to

  • Working Pressure:8~16[ bar ]116~232[ psig ]
  • Free Air Delivery:10.6~2309[ cfm ]0.3~65.4[ m3/min ]
  • Working Power:7.5[ kw ]10[ hp ]

Product Details

Product feature

The air-compressed automatic drain valve uses the air pressure of the air-compressed system itself and is connected via a conduit. The pressure relief valve at the top can adjust the slight exhaust to make the pressure of the drainer lower than that of the air-compressed system, and can push

the condensed water, sludge and rust residue away from the air-compressed system. After being squeezed continuously, these water and impurities

are input and accumulated at the bottom of the automatic drainer, and then the float rises to open the valve of the controller above, and then the

device is automatically discharged and closed in a quantitative manner. This device can effectively keep the air-compressed system clean, and it is

not restricted by height and distance when installed, and can be installed at an ideal position at will. It does not require the use of power or other

control conduits to flexibly and accurately discharge water and dirt.


Technical Parameters
