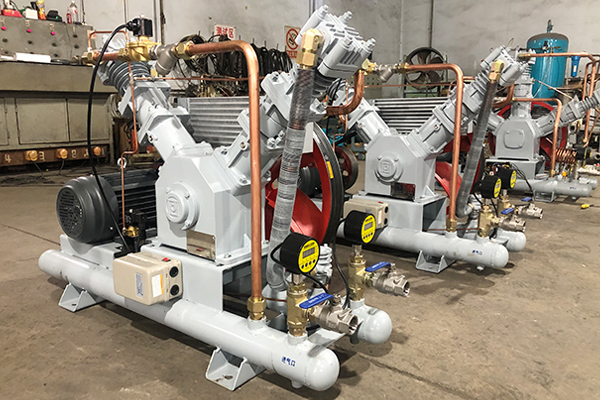

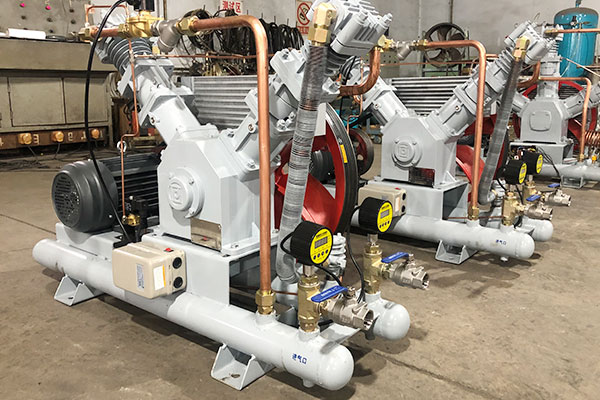

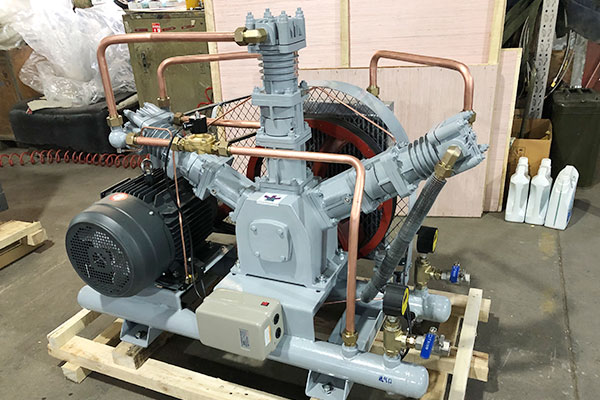

W-type three-cylinder high pressure oil-free nitrogen/oxygen booster compressor

The oil-free gas booster is based on our successful oil-free air compressor design concept, and realizes secondary boosting of non-flammable and non-explosive gases such as oxygen, nitrogen, chlorine

  • Working Pressure:5~25[ bar ]72.5~363[ psig ]
  • Free Air Delivery:10.6~142[ cfm ]0.3~4[ m3/min ]
  • Working Power:3~15[ kw ]4~20[ hp ]

Product Details

The oil-free gas booster is based on our successful oil-free air compressor design concept, and realizes secondary boosting of non-flammable and non-explosive gases such as oxygen, nitrogen,  chlorine, nitrogen, carbon dioxide, and sulfur hexafluoride.


1. There is no contact between the gas and the bearing, the pressurized element bearing the lateral force is transferred from the high temperature area to the low temperature area, and the service life of the bearing and the guide ring is doubled. Special relubrication structure makes maintenance faster.

2. The unique mid-body sealing structure improves the life of the seal and provides excellent sealing  effect. The leakage is less than 4/1000, which ensures the purity and cleanliness of the gas after  pressurization and prolongs the service life of the raw material machine.

3. Applicable gas: Nitrogen/Air, Oxygen(piston rings are different, please specify when ordering)

4. Pressure Range: 50 Barg

5.Flow Range: 240 m3 /h (Larger flow can be customized)

Technical Parameters

ModelInlet P (Mpa)Outlet P (Mpa)Capacity  (m3/h)Motor Power (Kw)Dimension L*W*H(mm)CompressionInlet sizeOutlet SizeWeight (kg)
RVWN-20/5-250.52.52031250x500x9002Rc1/2Rc1/2210
RVWN-30/5-250.52.53041250x550x9002Rc1Rc1230
RVWN-40/5-250.52.5405.51250x600x9002Rc1Rc1250
RVWN-50/5-250.52.5507.51250x600x9002Rc1Rc1270
RVWN-60/5-250.52.5607.51250x600x9002Rc1Rc1270
RVWN-70/5-250.52.5707.51250x600x9002Rc1Rc1270
RVWN-80/5-250.52.580111250x700x9002Rc1Rc1300
RWWN-100/5-250.52.5100111350x700x12002Rc1Rc1380
RWWN-120/5-250.52.5120151350x700x12002Rc1Rc1410
RWWN-140/5-250.52.5140151350x700x12002Rc1Rc1410
RSWN-160/5-250.52.516018.51500x800x12002Rc1Rc1490
RWWN-200/5-25-II0.52.520011x21600x1600x12002Rc11/2Rc1940
RWWN-240/5-25-II0.52.524015x21600x1600x12002Rc11/2Rc11000
