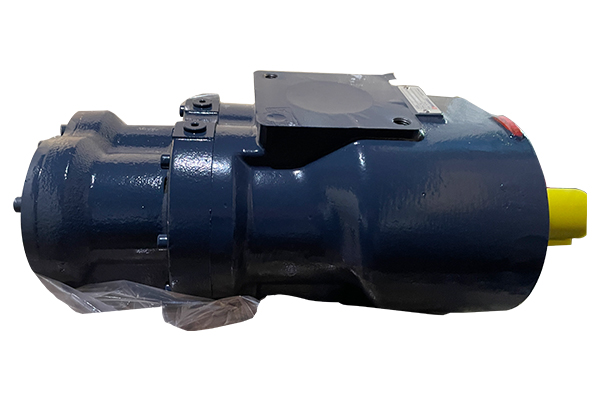

90kW Screw Compressor Head Hanbell Air End AA-1030R

Hanbell Air End AA-1030R,90kW Screw Compressor Head , screw air end

  • Working Pressure:6~16[ bar ]87~232[ psig ]
  • Free Air Delivery:35.3~1052[ cfm ]1~29.8[ m3/min ]
  • Working Power:7.5~185[ kw ]10~250[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

  1. Pressure range: 6~16 abr

  2. Eight bearing design, long life and good stability.

  3.  High application pressure.

  4.  Market application for more than 15 years, good reputation, benchmarking with international brand heads.



Technical Parameters

ModelPower (kW)Rotating speed (rpm)Air Delivery (m3/min)Shaft power (kW)Specific power (kW/m3/min)S.F.

Dimension(mm)

Weight

(kg)

AA-077(Belt)7.5342017.37.40.97320*179*15043
AA-077 (Belt)1152001.5117.21320*179*15043
AA-130(Belt)153420214.67.20.97445*210*17050
AA-21018.529502.919.46.71.05410*261*20770
AA-2402229503.522.76.41.03512*261*20773
AA-4203729506.238.26.11.03689*357*280155
AA-480R4529507.147.56.71.05476*373*299160
AA-600R5529509.157.66.31.05674*353*299180
AA-780R75295011.973.36.10.98746*434*350305
AA-1030R90295015.7104.56.61.08717*402*350275
AA-1200R110295019.4115.55.91.05863*575*412300
AA-1320132295021.4139.56.51.06863*610*442490
AA-1560160295023.9151.66.30.95928*630*453558
AA-1900R185295029.8186.66.21.01870*677*485680
