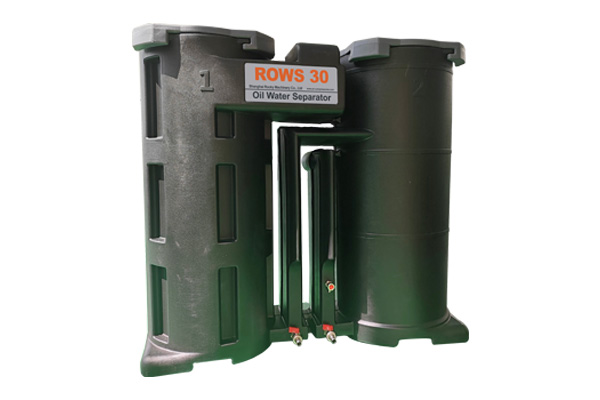

Air Compressor Post-Processing Equipment Condensate Oil-Water Separator ROWS 30

Condensate is a by-product of air compressing system, mainly composed of oil, water and air pollutants. Long-term discharge of condensate containing waste oil directly into the soil can lead to soil d

  • Working Pressure:7~16[ bar ]101.5~\232[ psig ]
  • Free Air Delivery:10.6~2295[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

Condensate is a by-product of air compressing system, mainly composed of oil, water and air pollutants. Long-term discharge of condensate containing waste oil directly into the soil can lead to soil degradation and plant death; if condensate containing waste oil enters drinking water sources, a ton of waste oil can pollute 1 million tons of drinking water. Condensate has been classified as industrial hazardous waste, the environmental regulations of various countries are clearly prohibited untreated air compressor condensate into canal.

ROWS Series of condensate oil water separator can effectively absorb mineral oil, semi-synthetic oil, total synthetic oil in condensate, and can also absorb emulsions formed by mineral oil or synthetic oil, so that the discharge of condensate water is in line with relevant national environmental protection requirements.

Technical Parameters

ROWS Condensate water oil separator

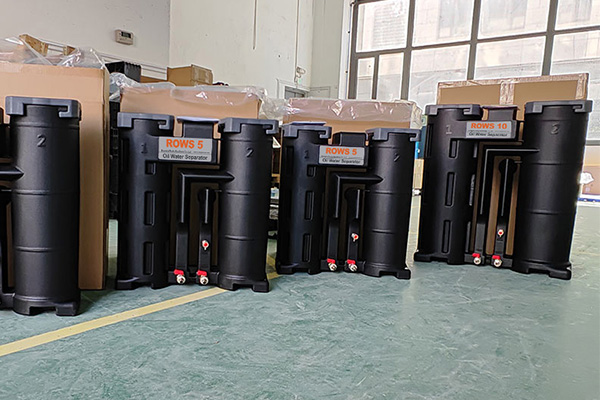

Product modelROWS  5ROWS 10ROWS  20ROWS 30ROWS 60
Max. compressor capacity((based on a 8h. shift))5 m3/min10 m3/min20 m3/min30 m3/min60 m3/min
Max. oil absorption5 L10 L15 L25 L50 L
Inlet2 * G1/2''2 * G1/2''2 * G1/2''2 * G1/2''2 * G1/2''
OutletG 1''G 1''G 1''G 1''G 1''
Test valveYesYesYesYesYes
Sample bottleYesYesYesYesYes
Service drainYesYesYesYesYes
Element life




indicatorYesYesYesYesYes
Overflow indicatorYesYesYesYesYes
Target output value<10 PPM<10 PPM<10 PPM<10 PPM<10 PPM
Housing materialPEPEPEPE PE
Dimensions(L* W*H)550 * 190 * 610650 * 240 * 750  780 * 305 * 900  970 * 380 * 900 1150 * 470 * 1045
Weight(kg)11.522 32 42 80
