Compressed air refrigerated dryer Industrial electric refrigerated dryer

The working principle of the refrigeration dryer is mainly to use refrigeration technology to reduce the temperature of compressed air, thereby removing the moisture in it.

  • Working Pressure:7~16[ bar ]101.5~232[ psig ]
  • Free Air Delivery:42.4~4589[ cfm ]1.2~130[ m3/min ]
  • Working Power:0.37~22.8[ kw ]0.5~30[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

The working principle of the refrigeration dryer is mainly to use refrigeration technology to reduce the temperature of compressed air, thereby removing the moisture in it.



Technical Parameters

TR series Environmental Protection Refrigerant Air Dryer
Model
TR01TR02TR03TR06TR08TR10TR12
Capacitym3/min1.22.43.66.58.510.513
Power supply
220V 1PH 50HZ/60HZ
Input powerkW0.370.520.7351.261.872.432.63
Air pipe connection
RC3/4"RC1"RC1-1/2"RC2"
Evaporator type
Aluminum alloy plate
Refrigerant model
R134aR410a
Display Anti-freezing protection
LED dew point display, LED alarm code display, operation status indication Constant pressure expansion valve & compressor
automatic start /stop
Temperature control
Automatic control of condensing temperature / dew point temperature
High voltage protection
Temperature sensorTemperature sensor&lnductive intelligent protection
Low voltage protection
Temperature sensor&lnductive intelligent protection
WeightKg34425063738594
DimensionL480520640700770770800

W380410520540590590610

H6657258509509909901030


Model

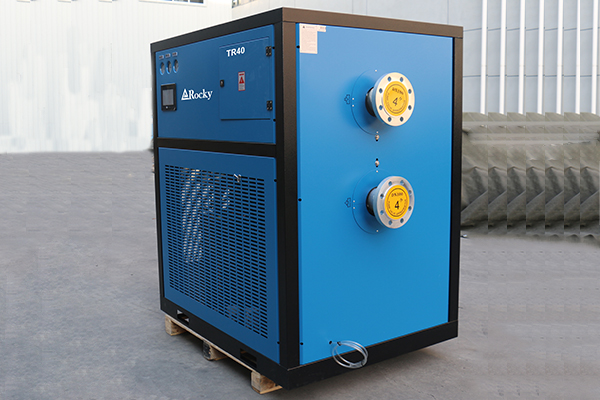

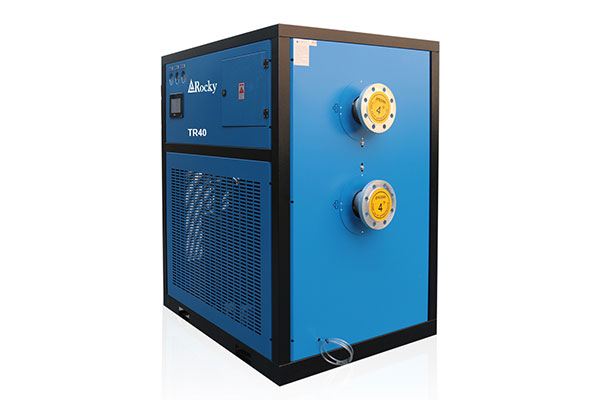

TR15TR20TR25TR30TR40TR50TR60TR80TR100TR120
Capacitym3/min1723273342556585110130
Power supply
380V 3PH 50HZ/60HZ
Input powerkW3.74.95.86.189.210.11218.722.8
Air pipe connection
DN50DN65DN80DN80DN100DN100DN100DN125DN150DN150
Evaporator type
Aluminum alloy plate
Refrigerant model
R407C
Display
LED dew point display, LED alarm code display, operation status indication
Anti-freezing protection
Constant pressure expansion valve & compressor automatic start /stop
Temperature control
Automatic control of condensing temperature / dew point temperature
High voltage protection
Temperature sensor&lnductive intelligent protection
Low voltage protection
Temperature sensor&lnductive intelligent protection
WeightKg18021035042055068078092010601200
DimensionL1000120012001450145016001650185022802100

W8509009501000110012001200135018001900

H1143120312731523168317001700185019602000
