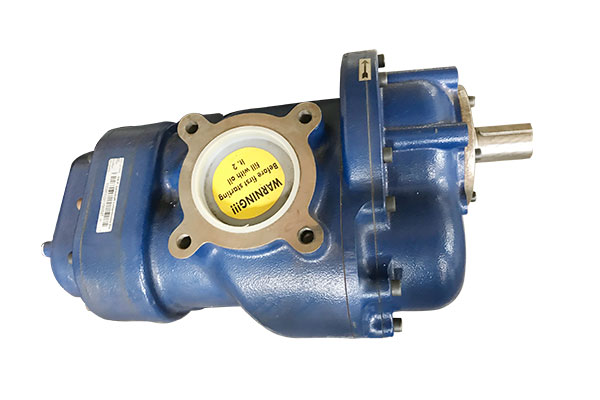

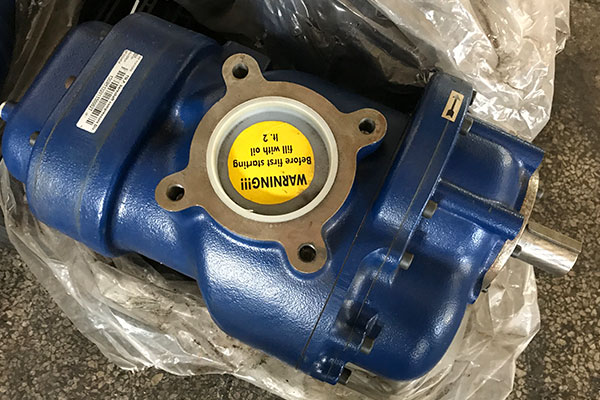

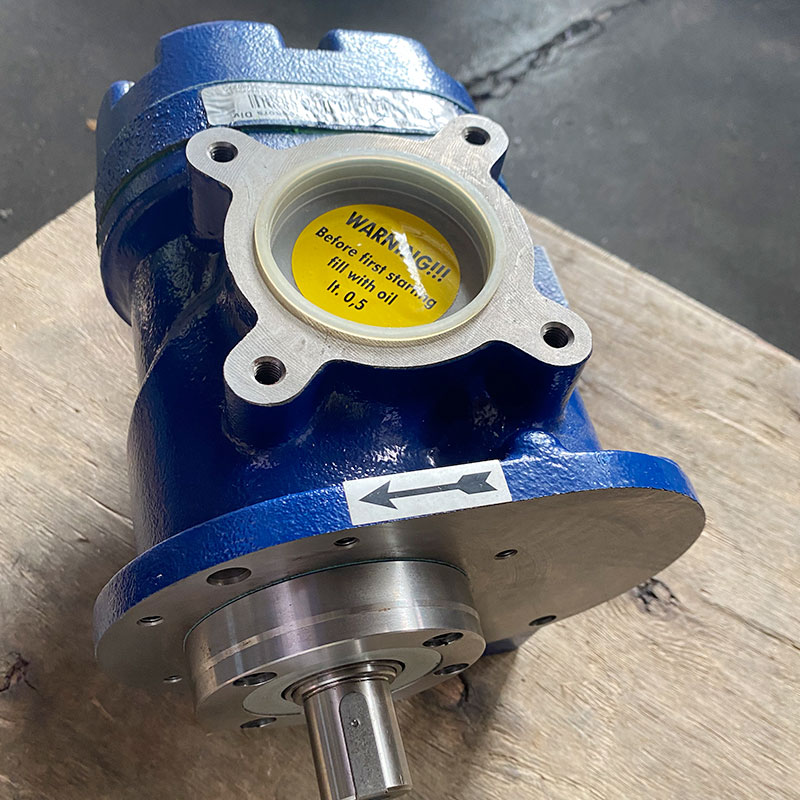

Original Italian Screw Air Compressor Head Tmc Air End SCA9DA

Experience the reliability and longevity of the Original Italian Screw Air Compressor Head TMC Air End SCA9DA. With a stable running performance and ample flow rate, this compressor head is built to l

  • Working Pressure:6~10[ bar ]87~232[ psig ]
  • Free Air Delivery:35.3~124[ cfm ]1~3.5[ m3/min ]
  • Working Power:7.5~15[ kw ]10~20[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Experience the reliability and longevity of the Original Italian Screw Air Compressor Head TMC Air End SCA9DA. With a stable running performance and ample flow rate, this compressor head is built to last. Trust in the quality and durability of this Italian screw compressor part.


Technical Parameters

ModelPower（kW）Pressure(bar)Diemension(mm)Weight(kg)
SCA7AL      5.5~113~13233*133.5*11510
SCA8DA5.5~113~15217*184.5*16418
SCA9DA7.5~153~15237*260*20740
SCA10DR  22~373~15228.5*260*20745
SCA13DR    37~453~15498*288*25574
SCA14DR    55~753~15503*312*280108
SCA14GR    75~903~15590*358*260140
SCA20DR    1103~15617*459*350263
SCA20GR   100~1323~15759*459*350320
SCA22DR    1323~15710*527*425393
