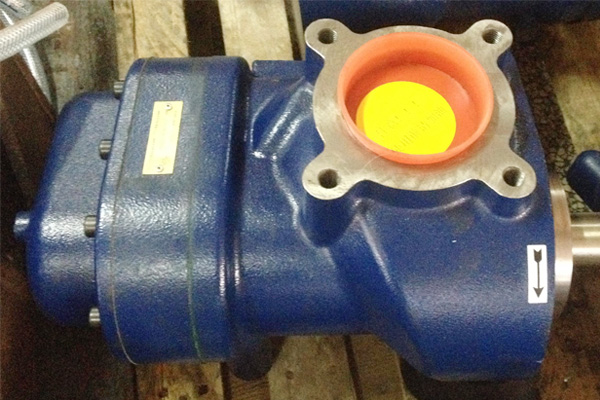

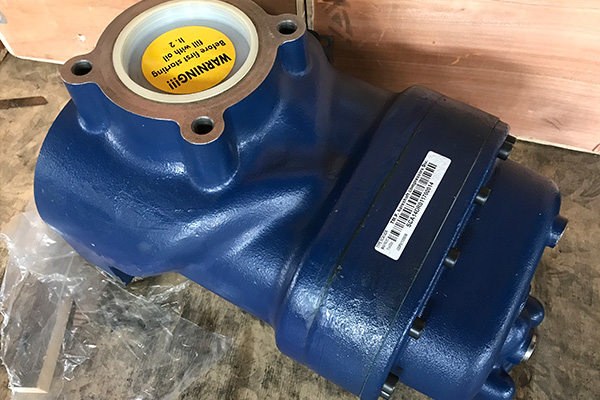

Italian Tmc Air End SCA14DR Compressor Head for 55-75kw Screw Compressor

Experience the exceptional performance and reliability of the 55~75kw Screw Air Compressor Head Air Compressor Spare Parts Original Italian Tmc SCA14DR. Made by the renowned Italian brand TMC, this ai

  • Working Pressure:6~10[ bar ]87~232[ psig ]
  • Free Air Delivery:70.6~494[ cfm ]2~14[ m3/min ]
  • Working Power:55~75[ kw ]75~100[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Experience the exceptional performance and reliability of the 55~75kw Screw Air Compressor Head Air Compressor Spare Parts Original Italian Tmc SCA14DR. Made by the renowned Italian brand TMC, this air compressor head guarantees a long life and stable running, ensuring uninterrupted operation for your air compressor system.

Technical Parameters

ModelPower（kW）Pressure(bar)Diemension(mm)Weight(kg)
SCA7AL      5.5~113~13233*133.5*11510
SCA8DA5.5~113~15217*184.5*16418
SCA9DA7.5~153~15237*260*20740
SCA10DR  22~373~15228.5*260*20745
SCA13DR    37~453~15498*288*25574
SCA14DR    55~753~15503*312*280108
SCA14GR    75~903~15590*358*260140
SCA20DR    1103~15617*459*350263
SCA20GR   100~1323~15759*459*350320
SCA22DR    1323~15710*527*425393
