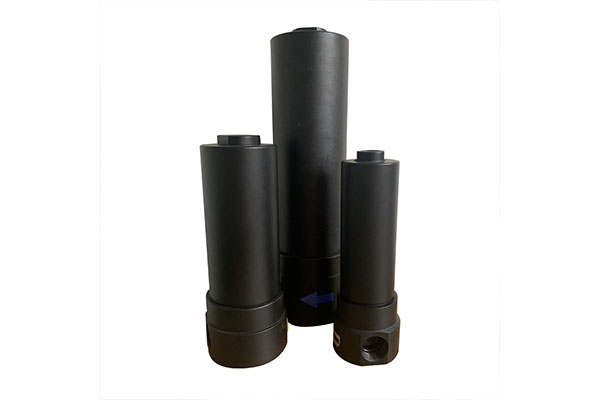

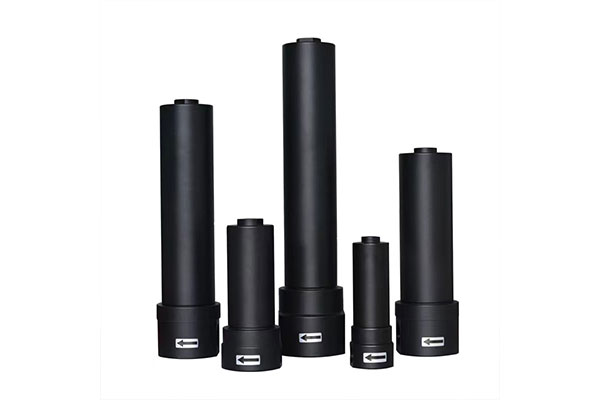

3m3/min compressed air industrial high pressure precision filter CNH-030*

The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are m

  • Working Pressure:7~16[ bar ]87~232[ psig ]
  • Free Air Delivery:388[ cfm ]11[ m3/min ]
  • Working Power:5.5~250[ kw ]7.5~350[ hp ]

Product Details

3m3/min compressed air industrial high pressure precision filter CNH-030*


The sterilizing filter is mainly composed of a micro filter element with a large specific surface area and a filtration The shell is made of 304 stainless steel, and the inner and outer surfaces are mirror polished, with anti-corrosion and low resistance; it is widely used for filtering and sterilizing various industrial gases, such as semiconductor, metallurgy, medical, pharmaceutical and food chemical industries.


Technical Parameters

Assembly modelflow(m³/min)Connection sizeFilter model
CNH-010*1 InchE*-16+
CNH-020*1 InchE*-20+
CNH-030*1 InchE*-24+
CNH-050*1.5 InchE*-28+
CNH-070*1.5 InchE*-32+
CNH-100*11 1.5 InchE*-36+
CNH-100*11 2 InchE*-36+
* Representative level:
C/T/A/X/H,corresponding accuracy:initial effect 3μm/medium effect 1μm/high efficiency 0.01μm/ultra-high efficiency 0.001μm/activated carbon.
