45m3/min zero loss blast heat dehumidification air dryer SGD-40

Zero loss blower desiccant air dryer is a kind of energy-saving compressed air treatment product, composed of the following components: Two adsorption towers, one electric heater, one air blower, one

  • Working Pressure:6~10[ bar ]87~232[ psig ]
  • Free Air Delivery:188.5~1595[ cfm ]13~110[ m3/min ]
  • Working Power:2.2~17.5[ kw ]3~408[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Zero loss blower desiccant air dryer is a kind of energy-saving compressed air treatment product, composed of the  following components: Two adsorption towers, one electric heater, one air blower, one after-cooler, one set of  switching valves and one set of controlling system.

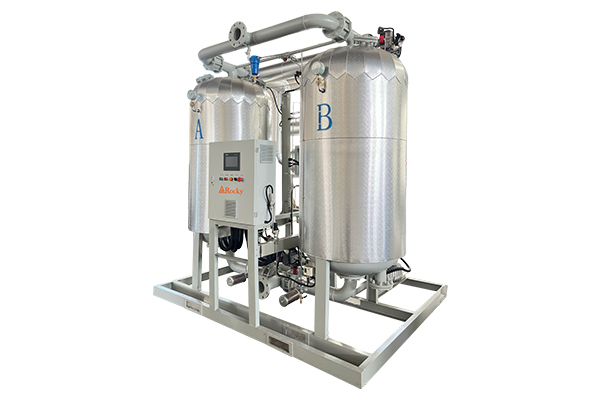

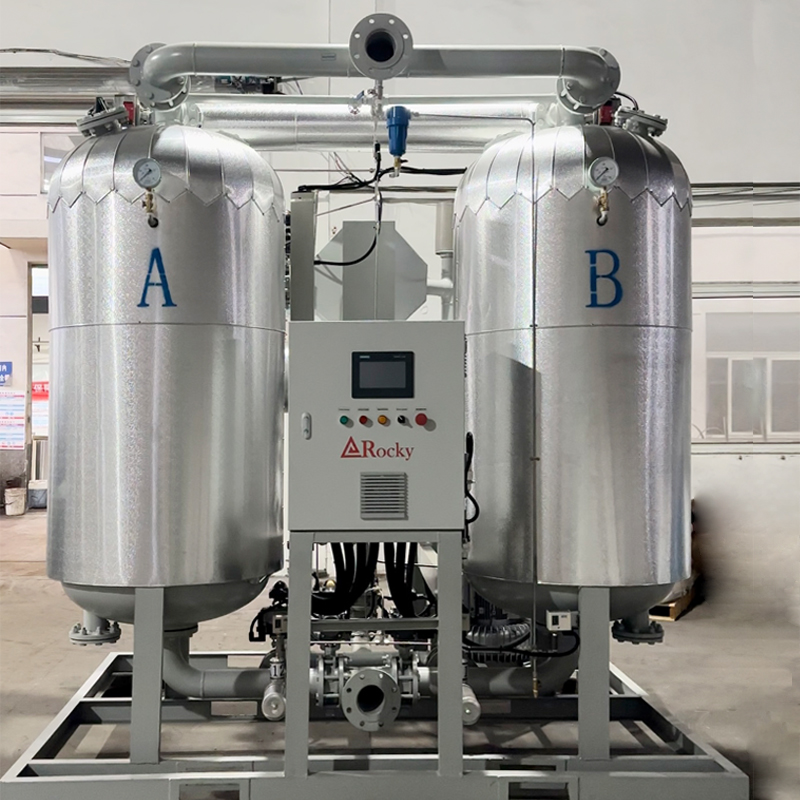

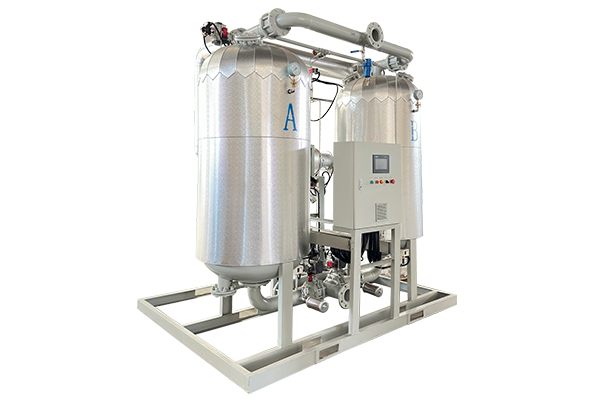

SGD-40 (1).jpg


Technical Parameters

SGD Series Zero Loss Blower Heat Desiccant Air Dryer
ModelAir Delivery (m3/min)Heating power（kW）

Blower

power (kW)

Air pipe connectionDimension (mm)Weight (Kg)
L*W*H
SGD-1213 92.2DN50950*1450*2150950
SGD-1517 123DN501150*1450*24501150
SGD-2023 153.3DN651380*1500*27801380
SGD-2527 184.2DN801720*1550*28801720
SGD-3034 245.5DN802060*1550*21002060
SGD-4045 32.47.2DN1002750*2180*29202750
SGD-5055 428.8DN1003430*2390*31003430
SGD-6065 4810.8DN1254120*2510*30804120
SGD-8087 64.813.8DN1505500*2780*31205500
SGD-100110 8117.5DN1506300*2920*32006300
