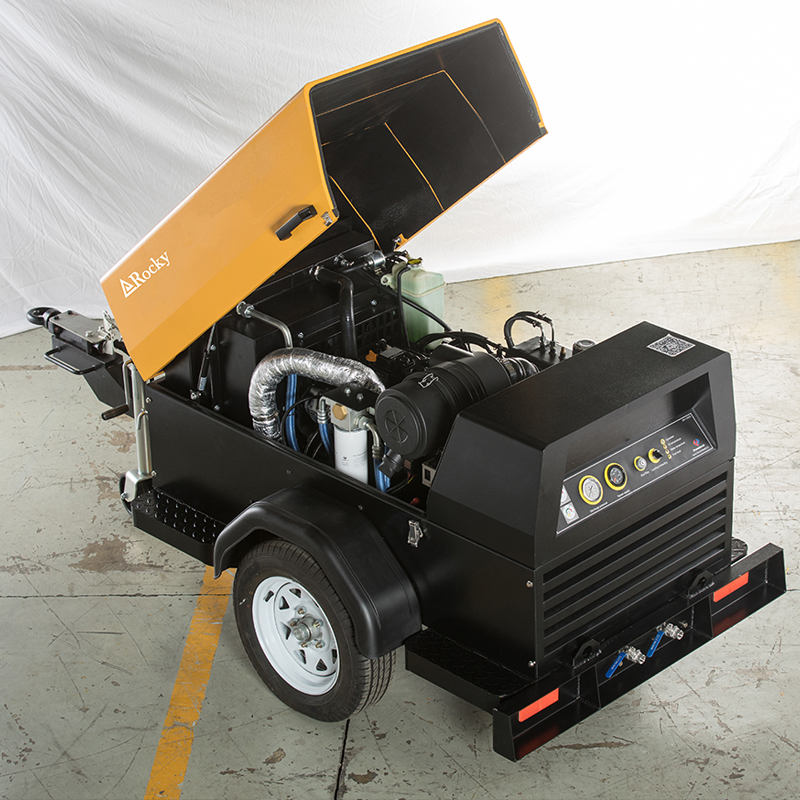

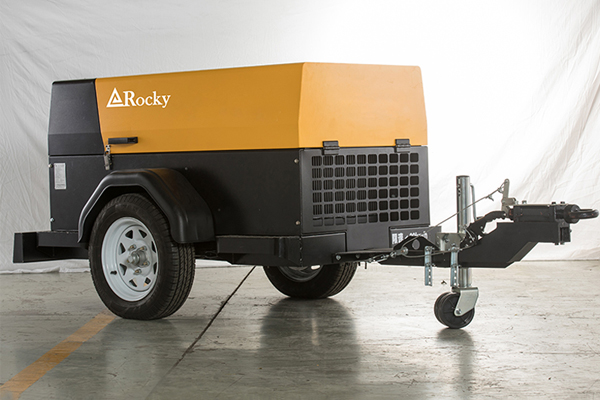

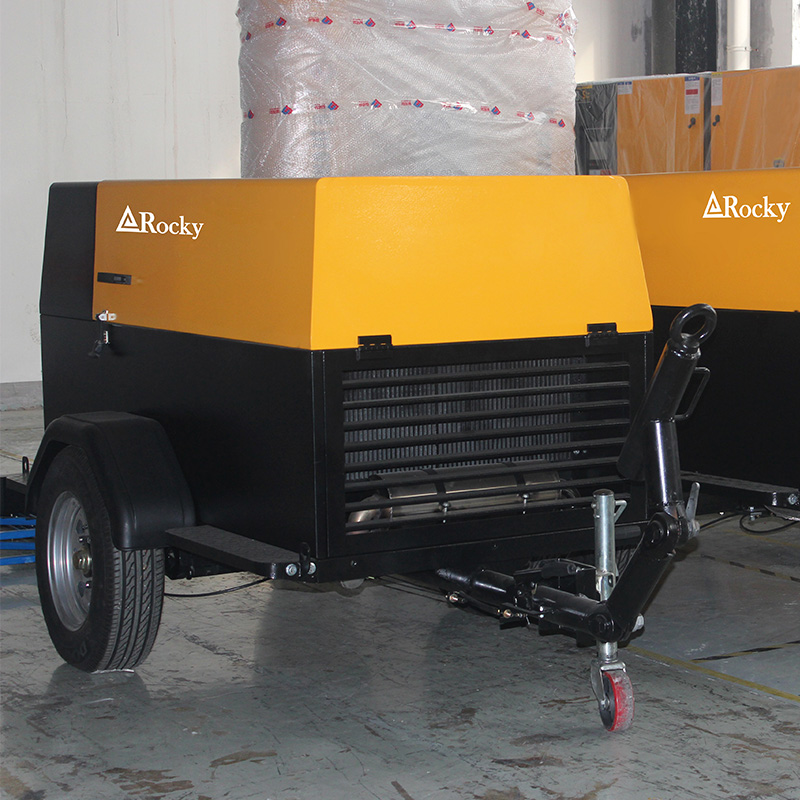

Two Wheels Portable Diesel Compressor 185cfm Air Compressor Rky-5/7

Working Pressure:7[ bar ]101.5[ psig ]
Free Air Delivery:176.5[ cfm ]5[ m³/min ]
Working Power:36.8[ kw ]50[ hp ]

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Two Wheels Portable Diesel Compressor 185cfm Air Compressor Rky-5/7

Product Details

Rocky diesel relocation machine can meet the requirements of overload use, and can withstand the worst on-site environment. At the same time, it can also reduce fuel consumption, thereby greatly reducing operating costs. With wheel design, it is easy to move and maintain, and is widely used in drilling, mining, road repair, engineering rescue and other industries.

Technical Parameters

Model	RKY-3.5/7	RKY-5/7	RKY-6/7	RKY-10/10	RKY-10/12	RKY-12/7	RKY-12.5/14	RKY-14/14	RKY-15/15	RKY-16/17	RKY-18/17	RKY-21/10	RKY-23/14
Volume flow (m³/min)	3.5	5	6.05	10	10	12	12.5	14	15	16	18	21	23
Working pressure (Barg)	7	7	7	10	12	7	14	14	15	17	17	10	14
Fuel tank volume(L)	45	70	100	140	160	160	160	160	280	280	280	360	360
Maximum ambient temperature(℃)	50	50	50	50	50	50	50	50	50	50	50	50	50
Compression stage	1	1	1	1	1	1	1	1	1	1	1	1	1
Engine brand	YANGMA	WEICHAI	WEICHAI	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS	CUMMINS
Engine model	3TNV88	WP3.2G50E347	WP3.2G61E317	QSB3.9-C130	QSB3.9-C130	QSB3.9-C125	QSB5.9-C180	QSB5.9-C210	QSB6.7-C240	QSB6.7-C240	QSC8.3-C260	QSB6.7-C240	QSL8.9-C325
Engine power(KW)	26.8	36.8	45	97	97	93	132	154	178	194	194	178	242
Maximum engine speed(Rpm)	3000	2500	2500	2200	2500	2300	2000	2200	2000	2200	2400	2000	2100
Minimum engine speed(Rpm)	1800	1750	1750	1500	1500	1500	1500	1500	1500	1500	1500	1500	1500
Wheels Qty	2	2	2	2	2	2	2	2	4	4	4	4	4
Noise level(dB)	75±3	75±3	75±3	80±3	80±3	80±3	85±3	85±3	85±3	85±3	88±3	88±3	88±3
Overall weight (kg)	880	1200	1550	1820	1840	1860	2020	2220	2750	2780	2910	2840	3020
Dimensions(LWH)mm	285312721092	323014401425	330015701560	380019001900	380019001900	380019001900	435019601950	435019601950	398018602450	398018602450	398018602450	458019502500	458019502500
Air outlet (inch)	2*G3/4	G1,G3/4	G1-1/4,*G1	G1-1/2, 2*G1-1/4	G1-1/2, 2*G1-1/4	G1-1/2, 2*G1-1/4	G1-1/2, 2*G1-1/4	G1-1/2, 2*G1-1/4	G1-1/2, 3*G1-1/4	G1-1/2, 3*G1-1/4	G1-1/2, 3*G1-1/4	G1-1/2, 3*G1-1/4	G1-1/2, 3*G1-1/4
