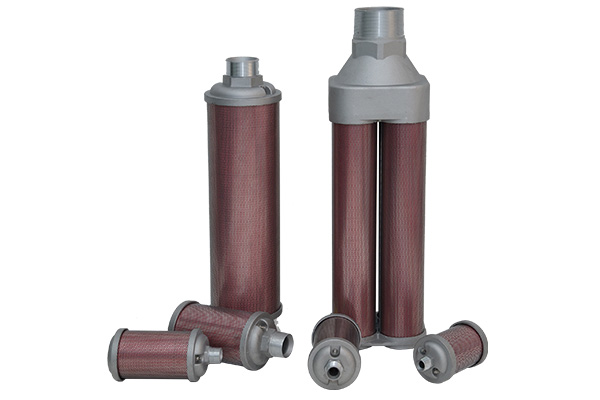

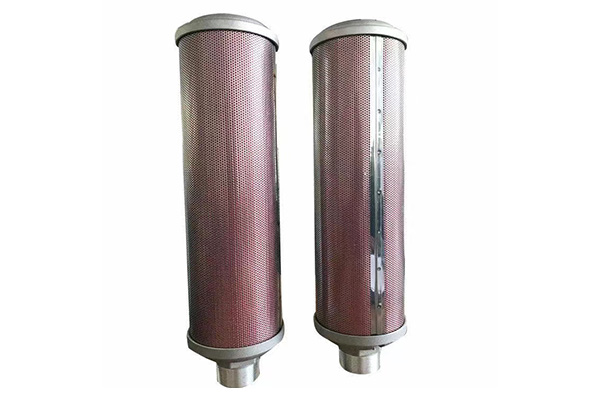

Dryer exhaust muffler XY series high pressure air compressor muffler

Air dryer muffler is a device used to reduce the noise of the dryer. It is usually composed of a main casing, sound-absorbing materials, and exhaust ducts. The use of sound-absorbing materials can red

  • Working Pressure:7~16[ bar ]87~232[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Air dryer muffler is a device used to reduce the noise of the dryer. It is usually composed of a main casing, sound-absorbing materials, and exhaust ducts. The use of sound-absorbing materials can reduce the noise generated by the operation of the dryer and the exhaust duct, ensuring a quiet production environment.


Features

1.  Application Field: Pneumatic, Oil pressure and Hydraulic systems.

2.  Function: to reduce noise and to remove dust and water.

3.  Pressure Range: 0-10 bar, Max.Pressure: 12 bar.

4.  Temperature Range: -10~70 °C.

5.  Noise Elimination Effect: 20-25 db.

6.  Filtration Rating: 5-100μm, regular rating is 40μm.

7.  NPT, G & BSPT thread are available;  regular thread is G thread.

8.  Material: Brass, SS304, SS316, PE.


Technical Parameters

Model No.Connection Size(Z) Overall Dimension(mm)
Hhc
XY-021/4"11292Φ46.5
XY-051/2"150125Φ80
XY-O73/4 "181156Φ87
XY-101 "219183Φ99
XY-121-1/4"219183Φ>99
XY-151-1/2 "340299Φ133
XY-202"476432Φ133
XY-303"593472173x173
