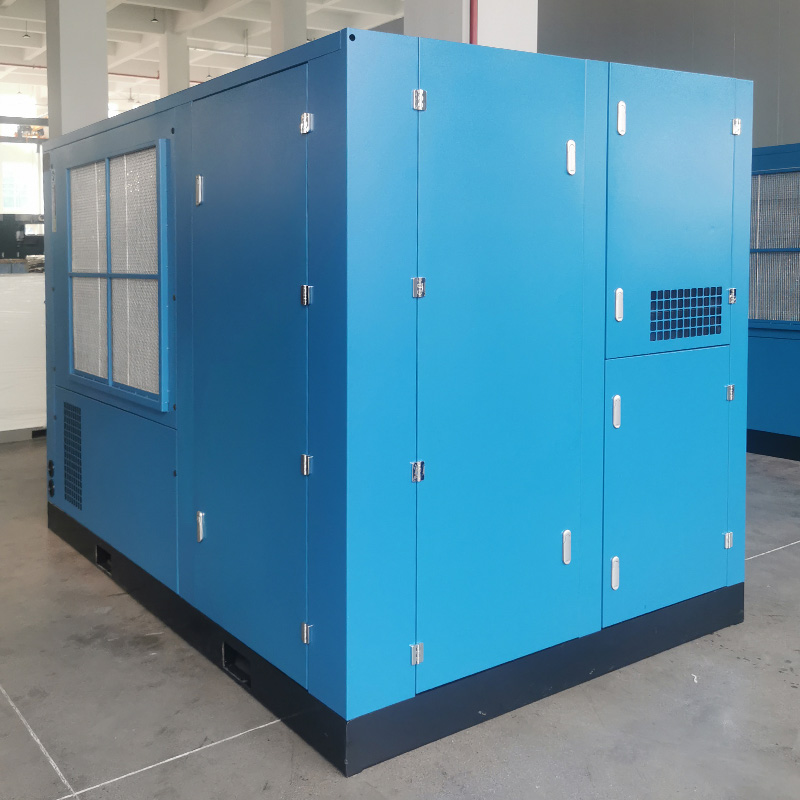

5.5 bar low pressure screw air compressor 75kW two-stage compressor

An air compressor with an exhaust pressure less than 0.5 MPa is called a low-pressure compressor. Some industries require lower pressure air compressors due to working conditions.

  • Working Pressure:5.5[ bar ]80[ psig ]
  • Free Air Delivery:678[ cfm ]19.2[ m3/min ]
  • Working Power:75[ kw ]100[ hp ]

Product Details

An air compressor with an exhaust pressure less than 0.5 MPa is called a low-pressure compressor. Some industries require lower pressure air compressors due to working conditions.

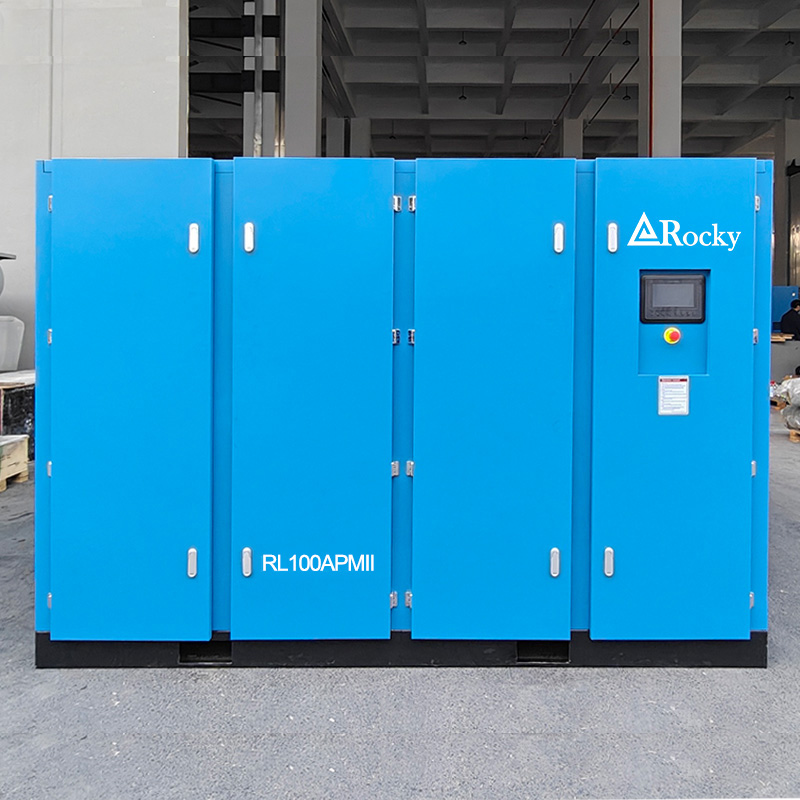

RL100APMII (16).jpg

Product feature

1. Screw air end with large rotor and low rotary speed, high performance operation.

2. Enlarged oil and gas pipe system, less pressure loss.

3. Excellent oil gas separation performance, the outlet oil content is less than 2 ppm.

4. The area of the oil radiator is increased more than 30% to ensure normal operation in high temperature climate without overheating.

5. Separately design the compression ration of the air end, to ensure the best specific power.

6. The air from low pressure screw machine is clean, reducing the times to clean the nozzle of texturing machine, improving

the quality of finished products.

7. Intelligent control system, adjust the air delivery automatically based on using (VFD models).

8. Networking module is optional, you can know the operation of machine through mobile at anytime anywhere.

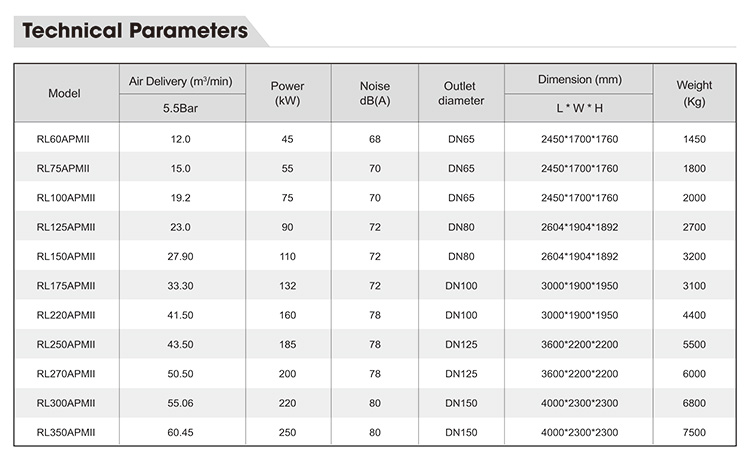

Technical Parameters

2024 Rocky air compressor catalog-11.jpg
