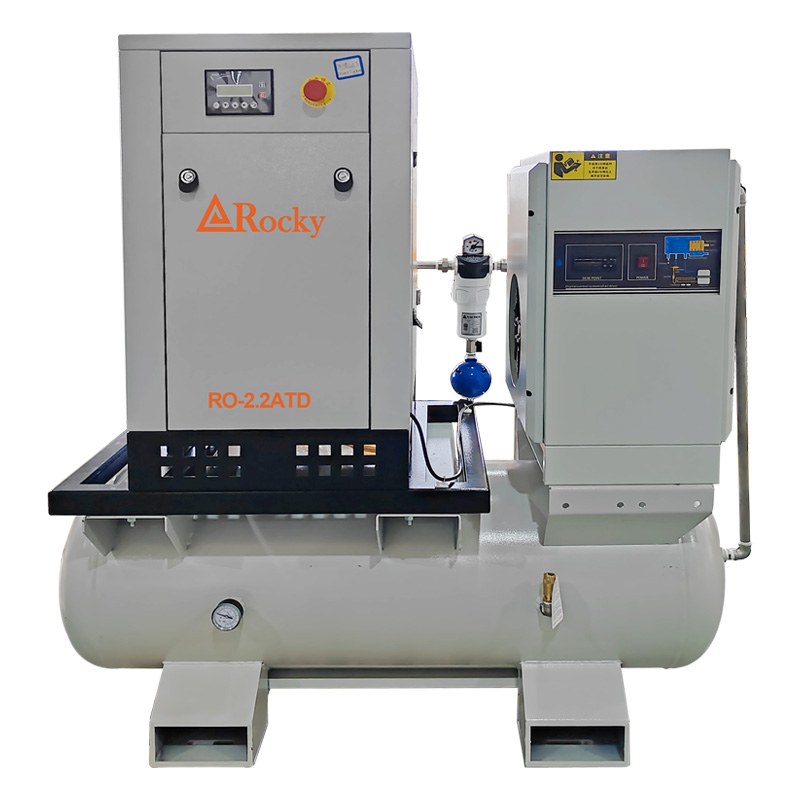

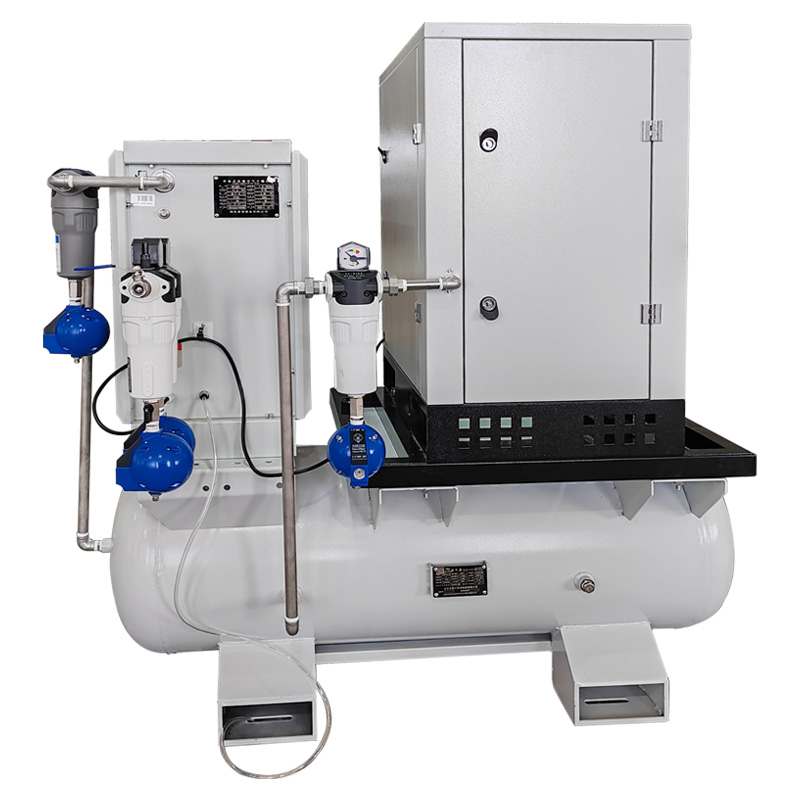

2.2kW Electric Oil-Free Scroll Air Compressor with Air Dryer

Compared with the traditional compressor, the oil-free scroll type has excellent performance such as novel structure, compact size, light weight, low noise level, long life and low maintenance cost

  • Working Pressure:7~10[ bar ]101.5~145[ psig ]
  • Free Air Delivery:7.8~8.5[ cfm ]0.22~0.24[ m3/min ]
  • Working Power:2.2[ kw ]3[ hp ]

Product Details

Compared with the traditional compressor, the oil-free scroll  type has excellent performance such as novel structure,  compact size, light weight, low noise level, long life and low  maintenance cost. It is known as "maintenance-free air compressor" and is an ideal model for air compressors  below 75HP.

RO-2 (10).jpg

Product feature

● Scroll air compressor fully oil-free
Class 0 oil-free is certified by German TUV organization.
● Scroll air compressor Low Vibration
The high-pressure area around the axis is evenly distributed without eccentricity, good balance and well controlled vibration.
● Scroll air compressor super silent
Reasonable vibration and noise reduction design, smooth output airflow without fluctuation, low noise and low vibration.
● Scroll air compressor intelligent and reliable
Multi-stage scroll air-ends, automatically controls the scroll units according to the air demand. Failed air-end doesn't affect to the system as all units are controlled independently.

Technical Parameters

Oil free scroll air compressor
ModelAir Delivery(m3/min)Power
(kW)
Air-endAir tankNoise
dB(A)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
8bar10barPower*QtyLitersL * W * H
RO-2.2AT0.24 0.22 2.22.2*14055G1/2700*500*1220160
RO-2.2ATD0.24 0.22 2.22.2*126055G1/21500*850*1480274
RO-3.7AT0.40 0.34 3.73.7*14055G1/2700*500*1220170
RO-2.2A0.24 0.22 2.22.2*1/55G1/2650*500*870125
RO-3.7A0.40 0.34 3.73.7*1/55G1/2650*500*870135
RO-5.5A0.60 0.55 5.55.5*1/55G1/2790*640*1050190
RO-7.5A0.80 0.68 7.43.7*2/60G1/2980*675*1270350
RO-11A1.20 1.10 115.5*2/60G3/4852*1274*1330450
RO-15A1.60 1.36 14.83.7*4/63G1 1/21565*1274*1330700
RO-16.5A1.80 1.65 16.55.5*3/63G1 1/21565*1274*1330710
RO-22A2.40 2.20 225.5*4/63G1 1/21565*1274*1330730
RO-33A3.60 3.30 335.5*6/65G1 1/21565*1274*17751020
RO-44A4.80 4.40 445.5*8/68G1 1/21565*1274*17751250
