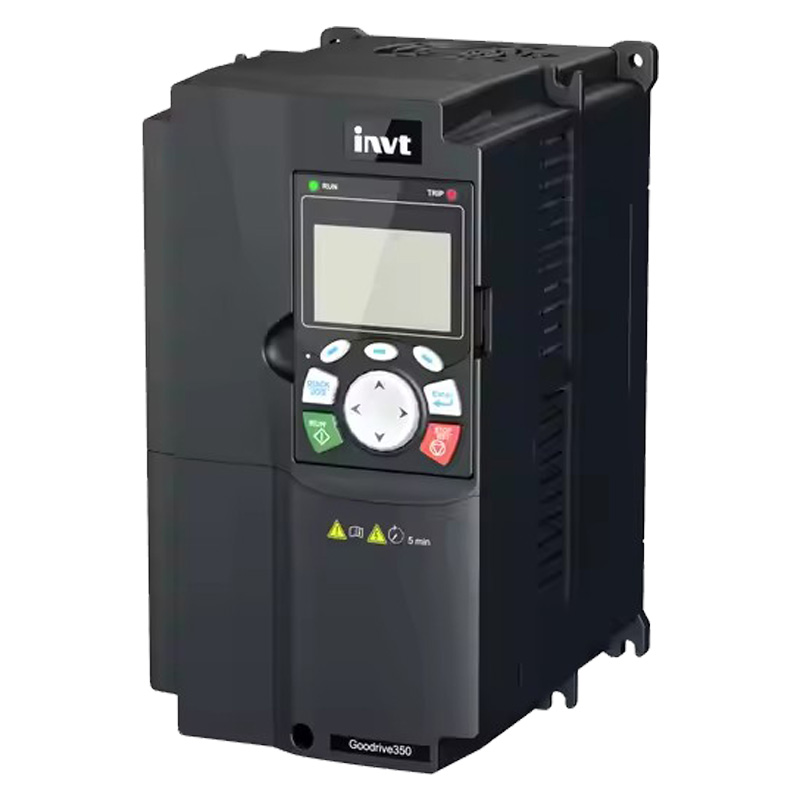

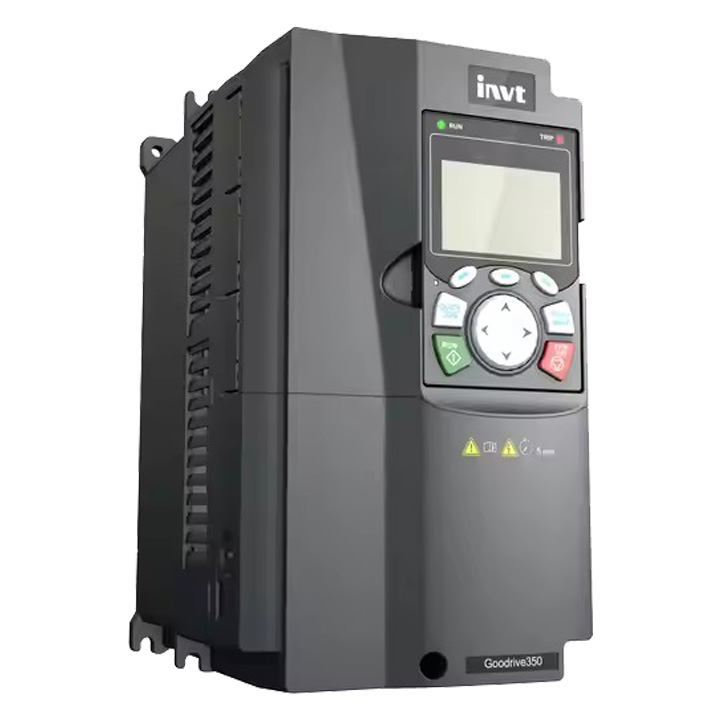

INVT AC drive vector inverter GD350 series inverter

GD350 is a new high-performance inverter with strong scalability and flexibility. It is equipped with PG card, PLC card, communication card, IO card and other configurations to meet the needs of various industries. It is aimed at the mid-to-high-end OEM equipment market and mainly covers printing and packaging, winding machines, CNC machine tools, CNC systems and other application fields.

Product Features

1. Supports SVC and VC(Closed loop) control for both asynchronous and synchronous motors.

2. Enables high precision of speed, position, torque control and fast speed response.

3. Supports optional PLC cards with CODESYS programming function.

4. Supports optional Field bus communication cards, including Profibus-DP, CANopen, and Ethernet, etc.

5. Supports optional PG cards for encoders like incremental and rotary transformer.

6. Accepts plug-in of three expansion cards simultaneously (only two cards below 7.5kW(10HP) ).

7. Integrates safety function-STO(Safe Torque OFF, SIL2)

8. Unique I/F control and online transition with other control modes, very suitable for the situation where the asynchronous motor has low speed with high torque and the speed accuracy is not high.

9. Provides intuitive LCD keyboard with maximum 16 lines text display as well as graphical display, Wizard Mode to set parameters while powered on.

10. Supports optional Bluetooth card and WiFi card to realize wireless communication.
