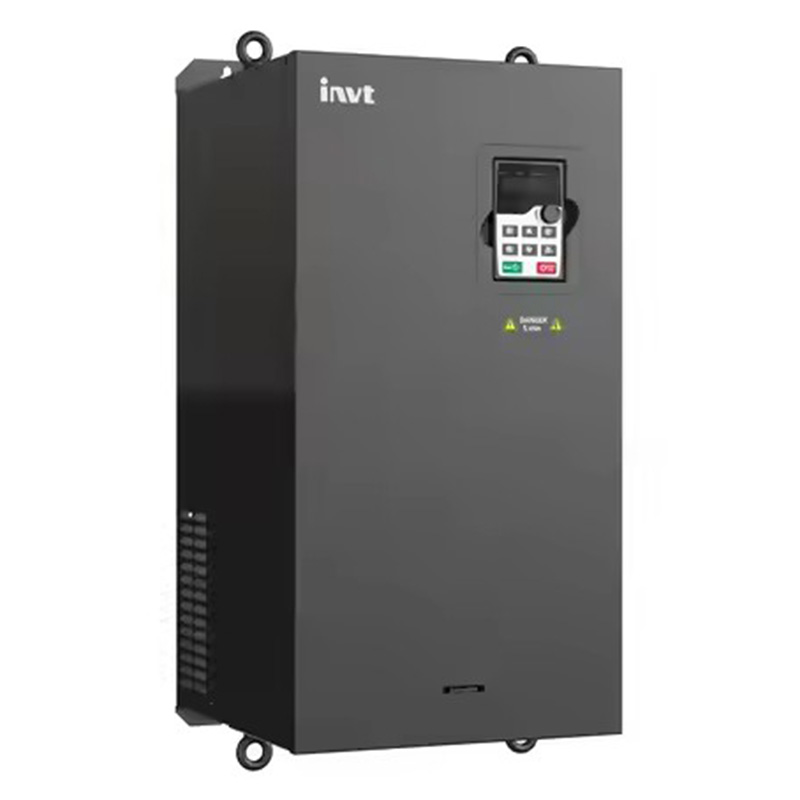

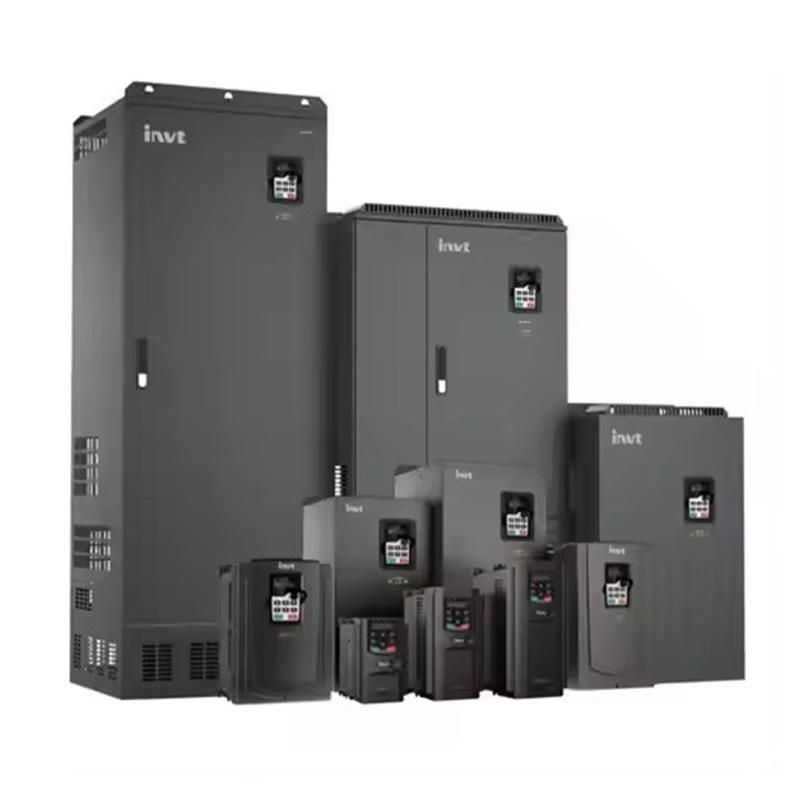

Goodrive 200A Series 380V frequency inverter General Open Loop Vector INVT Inverter

Input

Input voltage (V)

AC 3PH 220V(-15%)~240V(+10%) AC 3PH 380V(-15%)~440V(+10%) AC 3PH 520V(-15%)~690V(+10%)

Input frequency (Hz)

50Hz or 60Hz Allowed range: 47~63Hz

Output

Output frequency (Hz)

0~400Hz

Technical

control

feature

Control mode

V/F SVC

Motor type

Asynchronous motor

Speed ratio

Asynchronous motor 1:100

Overload capability

G type: 150% of rated current: 1 minute 180% of rated current: 10 seconds 200% of rated current: 1 second P type: 120% of rated
current: 60 second

Running

control

feature

Frequency setting

Digital setting, analog setting, pulse frequency setting, multi-step speed running setting, simple PLC setting, PID setting,
MODBUS communication setting, PROFIBUS communication setting. Realize the shifting between the set combination and set channel.

Auto voltage adjustment

Keep a stable voltage automatically when the grid voltage transients

Fault protection

Provide over 30 fault protection functions: overcurrent, overvoltage, undervoltage, overheating, phase loss and overload, etc.

Speed tracking

Restart the rotating motor smoothly

Peripheral

interface

Terminal analog input resolution

≤10mV

Terminal switch input resolution

≤ 2ms

Analog input

2 channels (AI1, AI2) 0~10V/0~20mA and 1 channel (AI3) -10~10V

Analog output

2 channels (AO1, AO2) 0~10V /0~20mA

Digital input

8 channels common input, the Max. frequency: 1kHz 1 channel high speed input, the Max. frequency: 50kHz

Digital output

1 channel high speed pulse output, the Max. frequency: 50kHz; 1 channel Y terminal open collector pole output

Relay output

2 channels programmable relay output RO1A NO, RO1B NC, RO1C common terminal RO2A NO, RO2B NC, RO2C common terminal Contactor
capacity: 3A/250VAC,1A/30VDC
