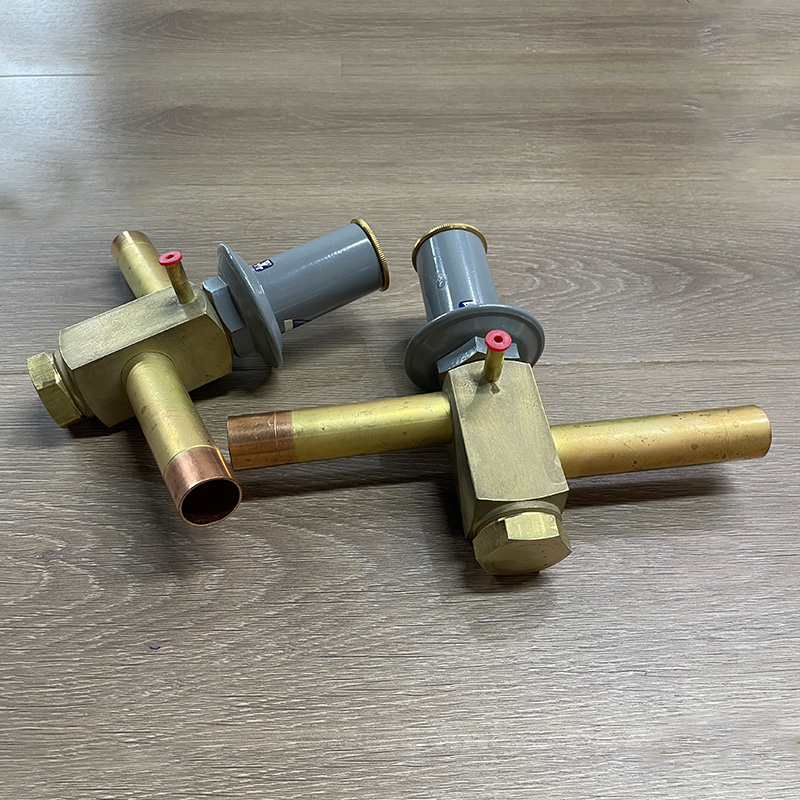

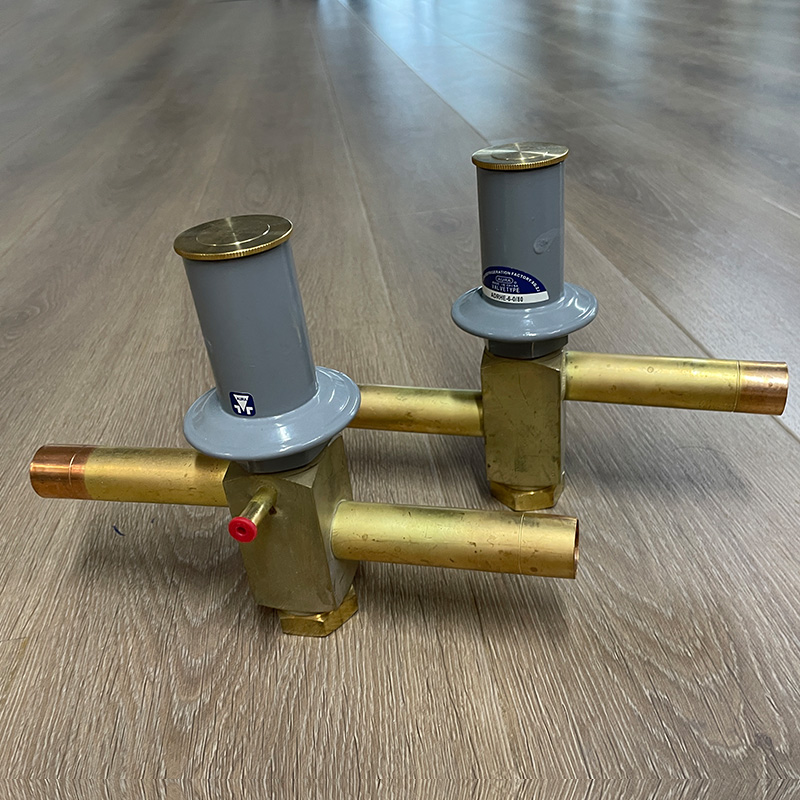

The air dryer bypass valve is a special valve used in the cold dryer. Its main function is to replace the pressure reducing valve and steam trap when necessary to ensure the normal operation of the equipment.
Product feature
1. Prevent ice blockage
The main function of the cold dryer bypass valve is to prevent ice blockage. When the air handling capacity of the
cold dryer decreases, the excess cold capacity in the evaporator will be too large, causing the temperature of the
evaporator cavity to drop below 0 degrees Celsius, and the condensed water will freeze, causing "ice blockage",
which will lead to gas blockage and make the cold dryer unable to work normally. The bypass valve effectively
prevents the occurrence of ice blockage by introducing high-temperature and high-pressure gas.
2. Improve equipment operation efficiency
The bypass valve adjusts the refrigerant evaporation temperature to ensure that the cold dryer operates at a suitable
temperature, thereby improving the operating efficiency of the equipment.
3. Extend equipment service life
The precise control and adjustment function of the bypass valve can reduce the risk of compressor damage due to
"liquid hammer", thereby extending the service life of the equipment.
