Dental oil-free silent scroll air compressor with air tank

Compared with the traditional compressor, the oil-free scrolltype has excellent performance such as novel structurecompact size, light weight, low noise level, long life and lowmaintenance cost.lt is

  • Working Pressure:8~10[ bar ]116~145[ psig ]
  • Free Air Delivery:7.7~8.5[ cfm ]0.22~0.24[ m3/min ]
  • Working Power:2.2[ kw ]3[ hp ]

Product Details

Compared with the traditional compressor, the oil-free scroll  type has excellent performance such as novel structure,  compact size, light weight, low noise level, long life and low  maintenance cost. It is known as "maintenance-free air  compressor" and is an ideal model for air compressors  below 75HP.

RO-2 (3).jpg

Product Features
1.High efficiency oil free scroll airend.100% oil-free. can be used in any industry, especially suitable for users with high oil content

requirements for compressed air.
2. Aptitude and intelligent Control, integrated touch-screen PLC displayer.
3.Unique safe units make whole compressor more safety, more stable,lest noise,lest energy Loss.
4.Quiet operation. The operation noise of the scroll air compressor is extremely low, and the working environment is healthier.
5.Easy to install,operate,maintain, no need to replace or add lubricating oil, only a small amount of consumables need to be replaced

regularly, and the maintenance cost is low.
6.Zero pollution, only discharge of condensate water, no other harmful substances, in line with the requirements of sustainable
development. provide High quanlity oild free compressed air.

Technical Parameters

Oil free scroll air compressor
ModelAir Delivery(m3/min)Power
(kW)
Air-endAir tankNoise
dB(A)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
8bar10barPower*QtyLitersL * W * H

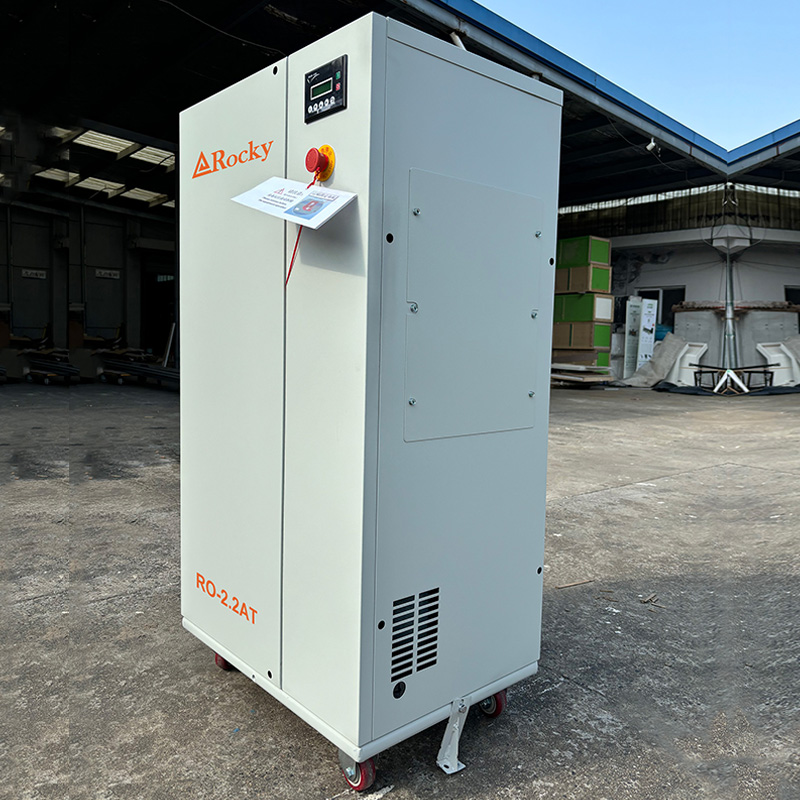

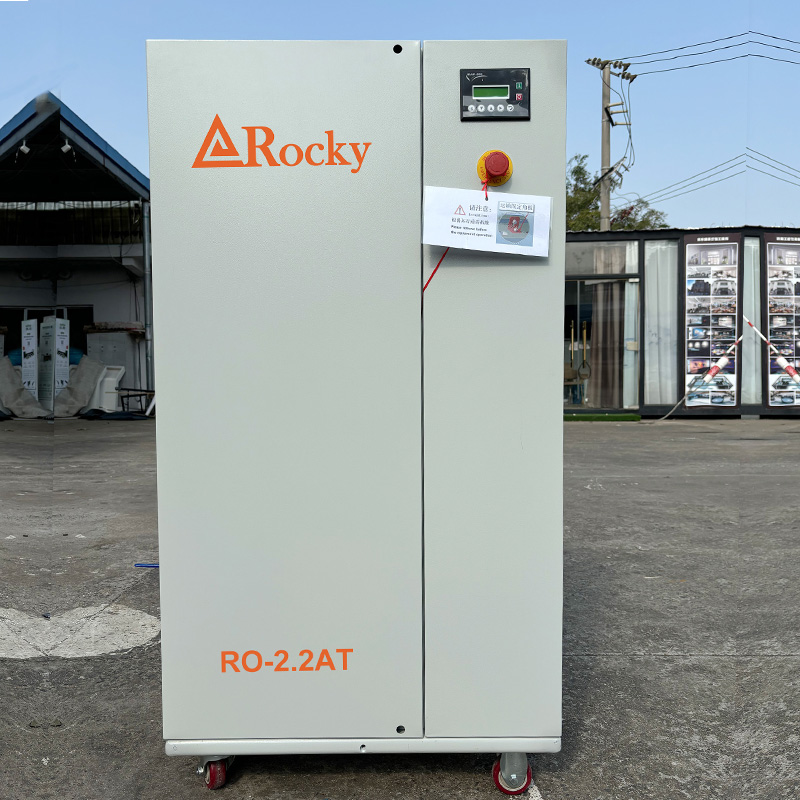

RO-2.2AT0.24 0.22 2.22.2*14055G1/2700*500*1220160
RO-3.7AT0.40 0.34 3.73.7*14055G1/2700*500*1220170
RO-2.2A0.24 0.22 2.22.2*1/55G1/2650*500*870125
RO-3.7A0.40 0.34 3.73.7*1/55G1/2650*500*870135
RO-5.5A0.60 0.55 5.55.5*1/55G1/2790*640*1050190
RO-7.5A0.80 0.68 7.43.7*2/60G1/2980*675*1270350
RO-11A1.20 1.10 115.5*2/60G3/4852*1274*1330450
RO-15A1.60 1.36 14.83.7*4/63G1 1/21565*1274*1330700
RO-16.5A1.80 1.65 16.55.5*3/63G1 1/21565*1274*1330710
RO-22A2.40 2.20 225.5*4/63G1 1/21565*1274*1330730
RO-33A3.60 3.30 335.5*6/65G1 1/21565*1274*17751020
RO-44A4.80 4.40 445.5*8/68G1 1/21565*1274*17751250
