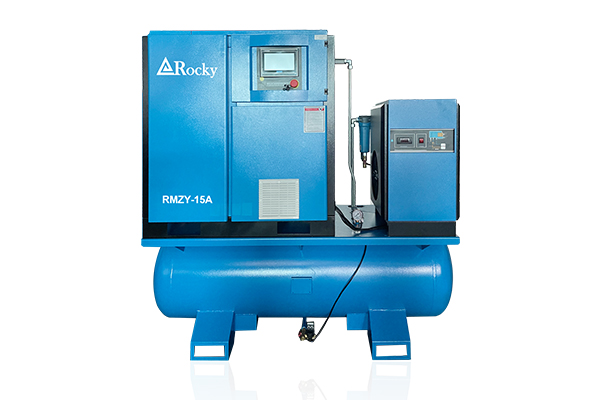

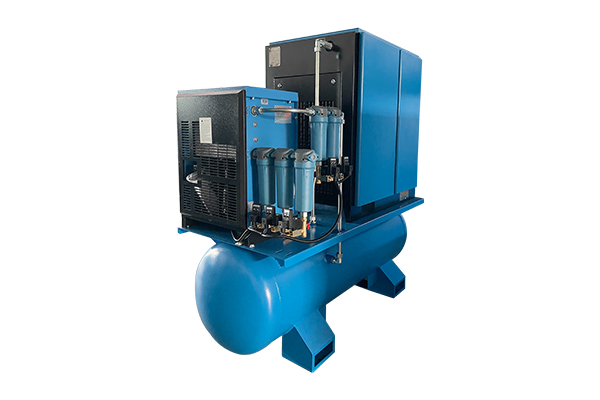

15KW 20 HP Laser Cutter Integrated Screw Air Compressor with Air Dryer

The integrated air compressor is an air compressor that integrates air compressor, refrigeration dryer, air storage tank, and precision filter. It is simple to install, convenient to maintain, small i

  • Working Pressure:16~20[ bar ]232~290[ psig ]
  • Free Air Delivery:37~138[ cfm ]1.05~3.9[ m3/min ]
  • Working Power:11~37[ kw ]15~50[ hp ]

Product Details

15KW 20 HP Laser Cutter Integrated Screw Air Compressor with Air Dryer


Product features

1. Latest high-tech screw air end, ensure high stability,  smoother cutting and better-looking cutting surface.

2. Multiple high-efficiency oil and water removal devices  ensure the compressed air entering the laser cutting  machine is dry and oil-less

3. Thermostatic control minimizes the moisture content  of the air, ensuring system reliability & lifetime

4. Equipped with a large-capacity air storage tank, which  stabilizes the air supply pressure and condensates the moisture.

5. The integrated automatic drainage system improves the  purity and dryness of the compressed air, significantly keeps  the laser lens clean away from contamination.

6. All-in-one design, user-friendly,easy to use and transport.




Technical Parameters

High Pressure Screw Air Compressor for Fiber Laser Cutting Application
ModelAir Delivery (m3/min)        maxExhaust
pressure
(Bar)            max
Power
 (kW/HP)
Noise
(Db)
Outlet
diameter
Dimension (mm)  Weight
    (Kg)
Exhaust
pressure
dew point (℃)
Exhaust dust
content (μm)
Exhaust oil
content (ppm)
Gas storage
tank capacity (L)
RMZY-15A1.051611/1565G3/41800*900*17804302~100.010.001400
RMZY-20A1.521615/2065G3/41800*900*17804502~100.010.001400
RMZY-30A2.411622/3068G3/41880*900*19805502~100.010.001400
RMZY-30AA2.411622/3070G3/42250*900*2080700-200.010.001400
RMZY-50AA3.91637/5070G3/42660*1000*2050980-200.010.001600
RMZY-15AS1.052011/1565G3/41800*900*17804602~100.010.001400
RMZY-20AS1.522015/2065G3/41800*900*17804802~100.010.001400
RMZY-30AS2.412022/3068G3/41880*900*19806002~100.010.001400
RMZY-30AAS2.412022/3070G3/42250*900*2080780-200.010.001400
RMZY-50AAS3.92037/5070G3/42660*1000*20501080-200.010.001600
