Micro-heat adsorption dryer Compressed gas adsorption dryer Drying equipment SRD-150

Compared to heatless dryer, the heated desiccant air dryer has heater in system . The desiccant adsorb the moisture under the working pressure by heating compressed air on regeneration process. By thi

  • Working Pressure:7~20[ bar ]101.5~232[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

Compared to heatless dryer, the heated desiccant air dryer has heater in system . The desiccant adsorb the moisture under the working pressure by heating compressed air on regeneration process. By this way, can save air loss better than heatless type dryer.

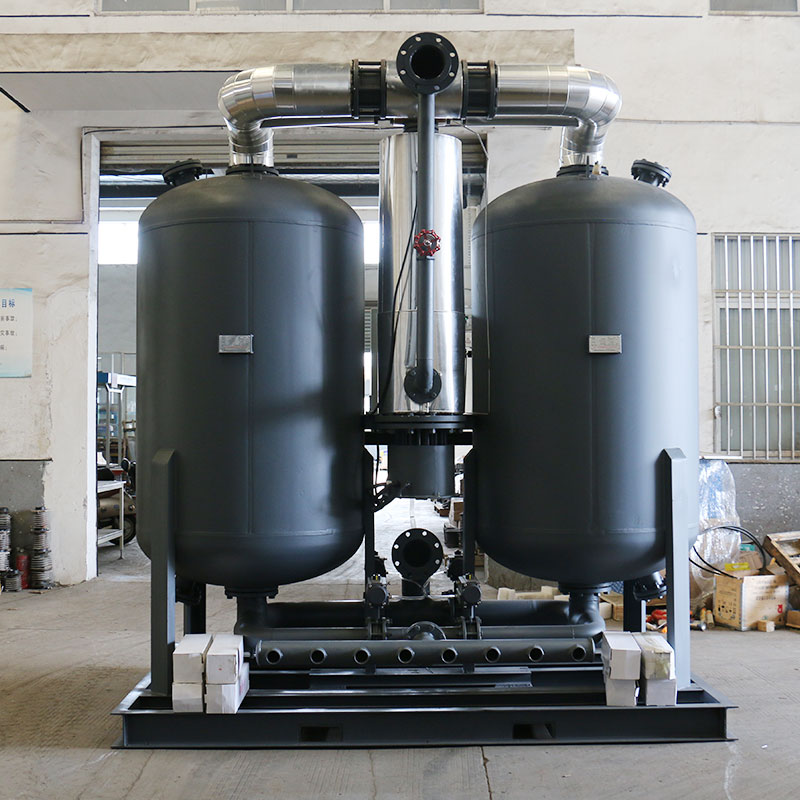

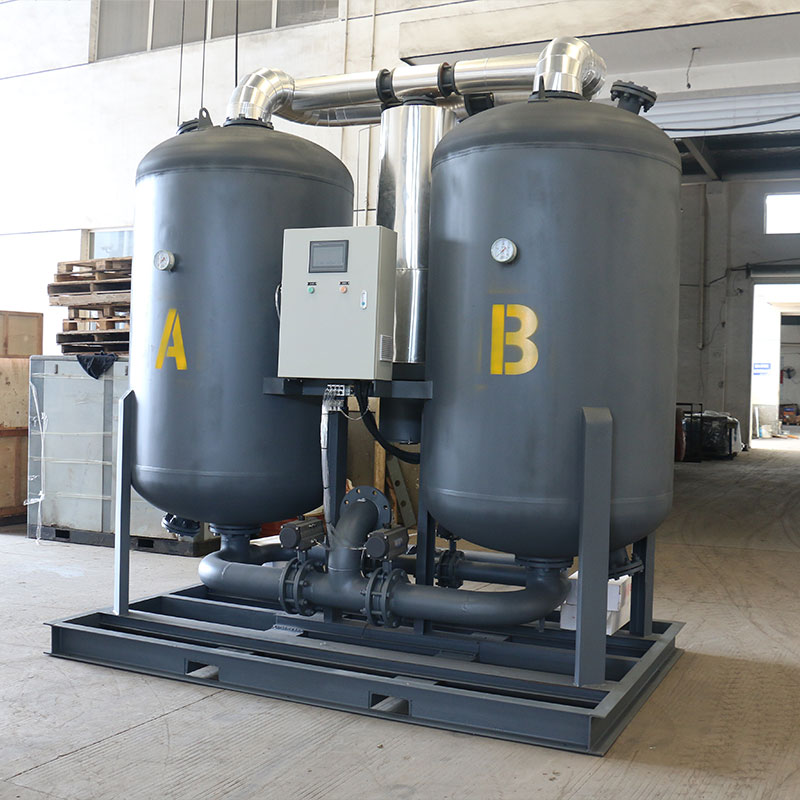

SRD-160 (6).jpg


Technical Parameters

SRD Series Heated desiccant air dryer
ModelAir Delivery (m3/min)Voltage
(V/HZ)
Power (kW)Inlet/Outlet
(PT)
Dimension (mm)Weight (Kg)
L*W*H
SRD-011.2220V/50HZ1RC1”670*500*1305135
SRD-022.4220V/50HZ1RC1”670*580*1685170
SRD-033.2220V/50HZ1RC1”850*580*1450240
SRD-066.5220V/50HZ2RC1 1/2”1025*700*1700285
SRD-088.5220V/50HZ2RC2”1100*700*2050255
SRD-1011.5380V/50HZ3RC2”1200*500*2173526
SRD-1213.5380V/50HZ3RC2”1300*500*2183605
SRD-1517380V/50HZ5DN651280*820*2360712
SRD-2023380V/50HZ6DN801400*930*2530848
SRD-2527380V/50HZ8DN801650*990*24501150
SRD-3034380V/50HZ9DN801700*955*24101328
SRD-4045380V/50HZ12DN1001950*1000*25501674
SRD-5055380V/50HZ15DN1002010*1170*26502100
SRD-6065380V/50HZ18DN1252160*1470*27052707
SRD-8085380V/50HZ24DN1502420*1550*28003573
SRD-100110380V/50HZ30DN1502500*1650*28004639
SRD-120130380V/50HZ36DN1502650*1650*28005100
SRD-150155380V/50HZ45DN2002800*1300*29005586
