Blower Heated Adsorption Air Dryer SGD-40 Desiccant Air Dryer

Zero loss blower desiccant air dryer is a kind of energy-saving compressed air treatment product, composed of theolowing components: Two adsorption towers, one electric heater, one air blower, one aft

  • Working Pressure:7~20[ bar ]101.5~232[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

ROCKY CATALOG 2025 VERSION Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog 2025 Rocky Medium High pressure air compressor catalog

Product Details

Zero loss blower desiccant air dryer is a kind of energy-saving compressed air treatment product, composed of theolowing components: Two adsorption towers, one electric heater, one air blower, one after-cooler, one set of switching valves and one set of controlling system.

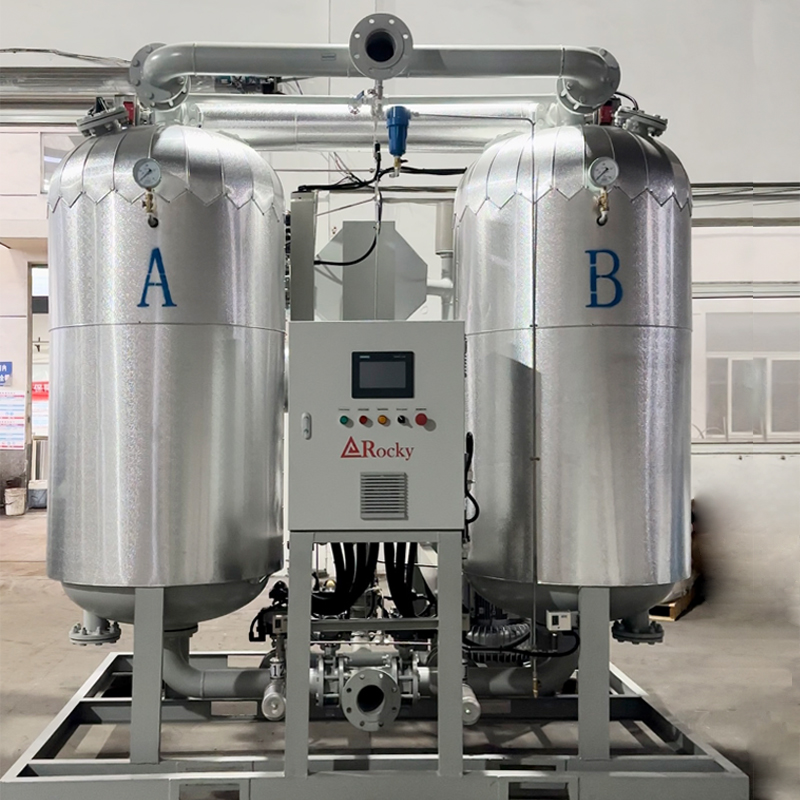

SGD-40 (1).jpg

Technical Parameters

SGD Series Zero Loss Blower Heat Desiccant Air Dryer
ModelAir Delivery (m3/min)Heating power（kW）Blower power (kW)Air pipe connectionDimension (mm)Weight (Kg)
L*W*H
SGD-1213 92.2DN50950*1450*2150950
SGD-1517 123DN501150*1450*24501150
SGD-2023 153.3DN651380*1500*27801380
SGD-2527 184.2DN801720*1550*28801720
SGD-3034 245.5DN802060*1550*21002060
SGD-4045 32.47.2DN1002750*2180*29202750
SGD-5055 428.8DN1003430*2390*31003430
SGD-6065 4810.8DN1254120*2510*30804120
SGD-8087 64.813.8DN1505500*2780*31205500
SGD-100110 8117.5DN1506300*2920*32006300
