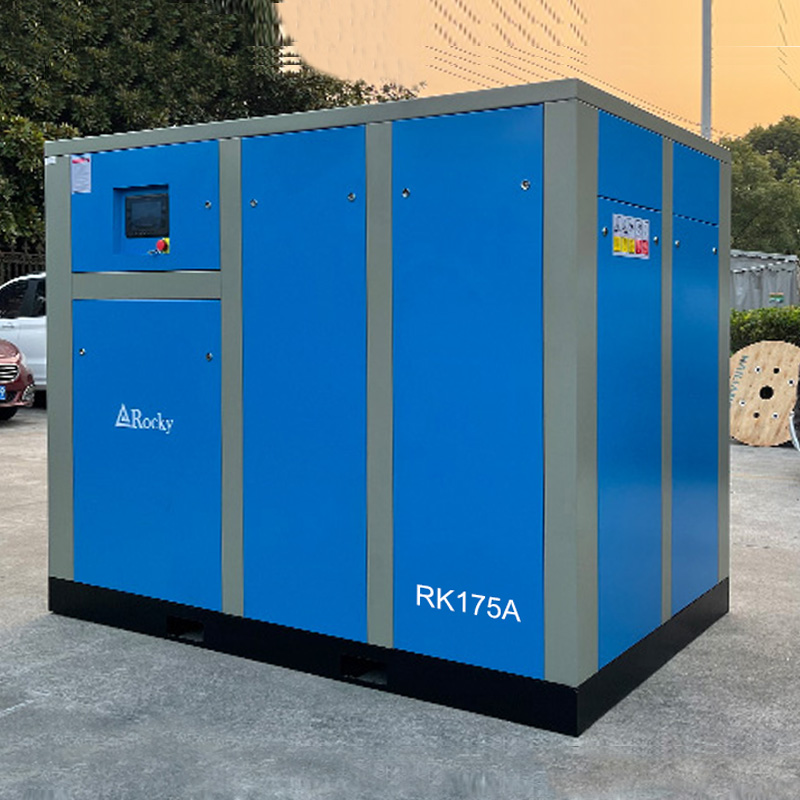

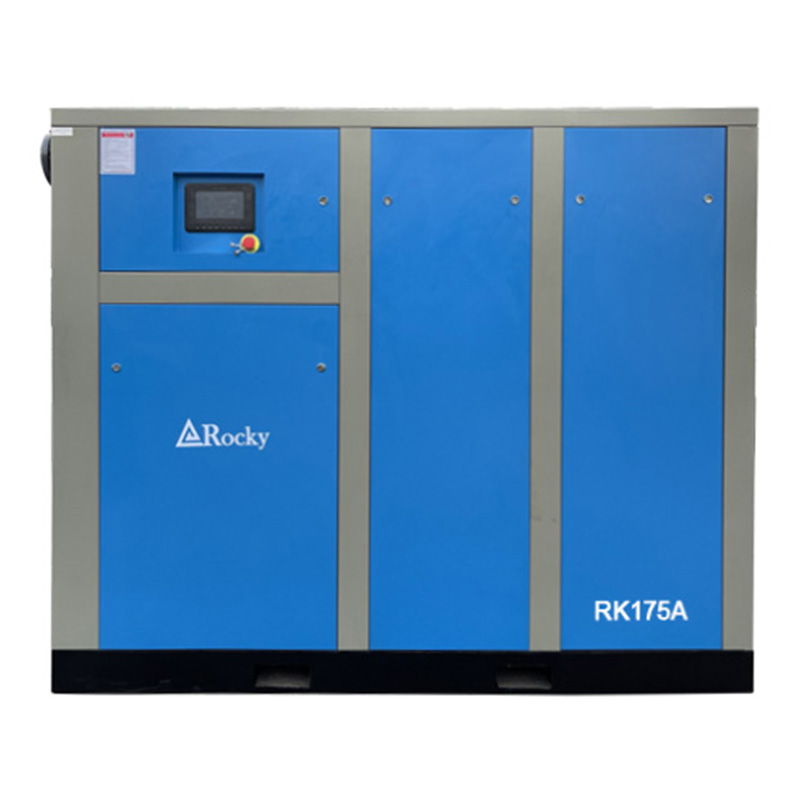

175 HP Fixed Speed Screw Compressor Industrial Screw Air Compressor

Industrial frequency fixed speed screw air compressor refers to a screw air compressor that uses industrial frequency power supply and has a fixed motor speed.

  • Working Pressure:7~13[ bar ]101.5~188.5[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Industrial frequency fixed speed screw air compressor refers to a screw air compressor that uses industrial frequency power supply and has a fixed motor speed.


Product features

1. Excellent performance, true first class energy consumption.

2. After a long time operation, the input power is not higher than the new machine. True energy saving.

3. Suitable for variety hard environment conditions. It can operate well under the environment temperature from -30°C to 55°C.

4. 24 hours continuous trouble-free operation, highly automated intelligent PLC, remote control function.

5. Double filtration system, remove impurities and particles in the suction air, longer life of the air end and lubricating oil.


Technical Parameters

Direct Driven Screw Air Compressor
ModelAir Delivery (m3/min)Power
     (kW)		Noise
(Db)		Outlet
diameter		Dimension (mm)  Weight
    (Kg)
7bar8bar10bar13barL * W * H
RK10A1.3 1.2 1.0 0.7 7.563G3/4700*600*860180
RK15A1.8 1.7 1.6 1.0 1165G3/41000*750*1070300
RK20A2.4 2.3 2.0 1.6 1565G3/41000*750*1070320
RK30A3.7 3.6 3.2 2.8 2268G11350*850*1120430
RK40A5.2 5.0 3.9 3.4 3068G11350*800*1110460
RK50A6.5 6.2 5.6 4.9 3769G1 1/21500*1000*1350650
RK60A8.0 7.3 6.0 5.9 4570G1 1/21500*1000*1350730
RK75A10.1 9.5 8.7 7.3 5570G21700*1220*1550950
RK100A13.6 12.8 11.3 9.2 7572G21700*1200*15501050
RK125A16.1 15.5 13.6 12.5 9072G22100*1400*16501420
RK150A21.2 19.6 17.8 15.5 11072DN652500*1650*19002200
RK175A24.1 23.2 19.5 17.8 13272DN652500*1650*19002400
RK220A28.8 27.8 23.0 20.0 16072DN803000*1900*19503650
RK250A32.5 31.2 27.5 25.8 18572DN803000*1900*19503950
RK275A34.5 34.0 30.5 28.0 20076DN803600*2200*22004200
RK300A36.8 35.0 32.0 30.0 22076DN1003600*2200*22004600
RK350A43.0 41.5 38.0 34.9 25076DN1003600*2200*22005900
RK375A51.3 50.6 46.0 41.5 28082DN1003600*2200*22006000
RK420A56.8 55.9 50.1 42.0 31582DN1254600*2300*24307800
RK420W56.8 55.9 50.1 42.0 31582DN1254200*2300*24307500
RK475A66.1 65.4 55.1 46.0 35585DN1254600*2300*24308200
RK475W66.1 65.4 55.1 46.0 35582DN1254200*2300*24307900
