15kw 20HP Pm VSD Rotary Screw Air Compressor for Industrial

‌Permanent magnet variable frequency air compressor‌ is an air compressor that combines permanent magnet synchronous motor and variable frequency control technology. It uses the high efficiency perfor

  • Working Pressure:7~20[ bar ]101.5~232[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

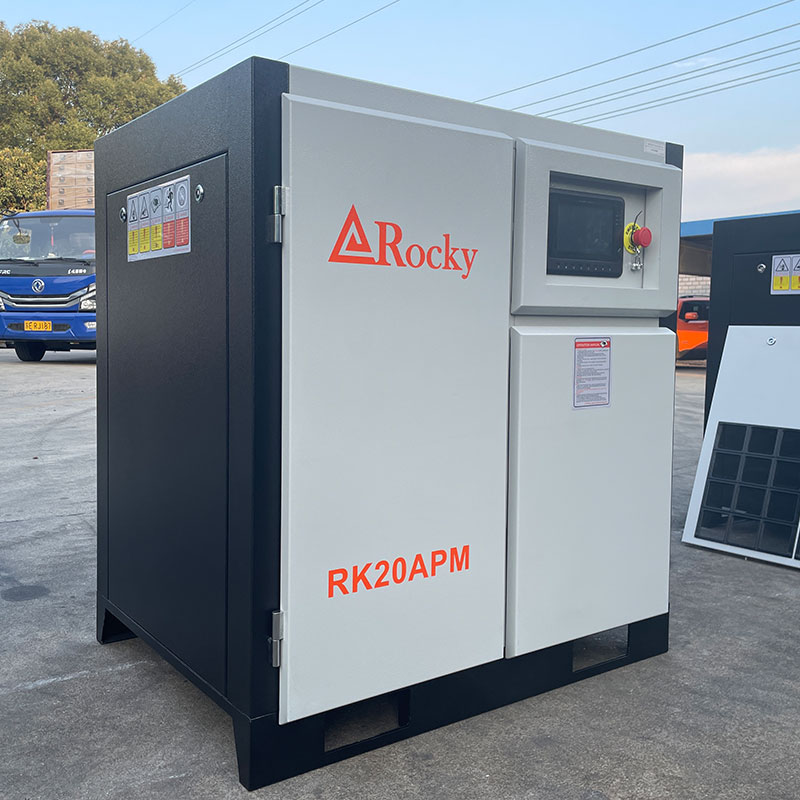

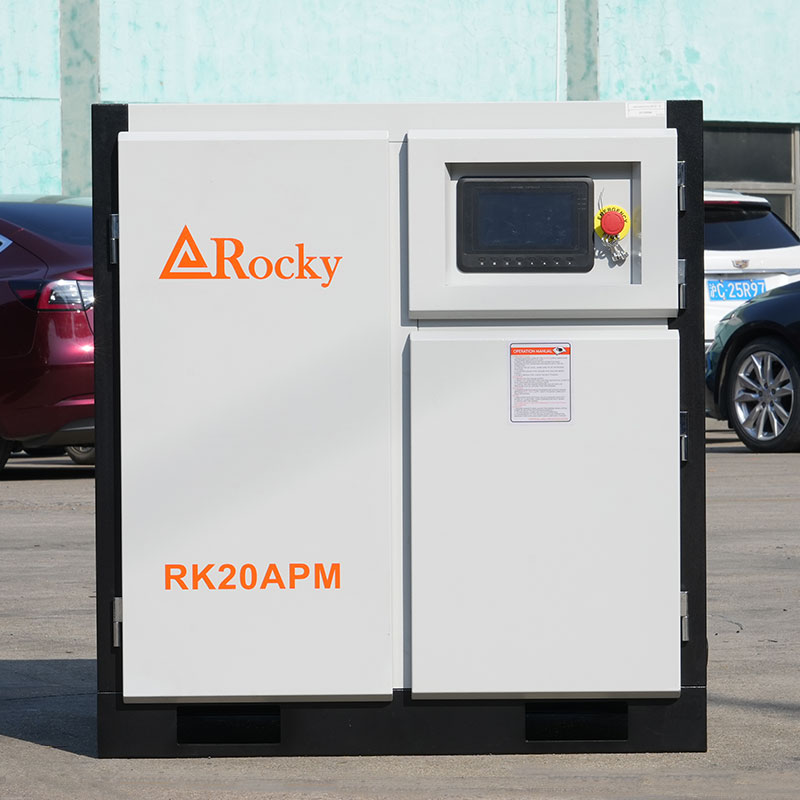

RK20APM (6).jpg

Product feature

1. RKM Series adopts intelligent frequency conversion technology, energy saving up to 42%.

2. Excellent oil air separation performance, outlet oil content is less than 2 ppm.

3. World famous brand inverter with global warranty.

4. Super IE4 class, IP55 protection grade, 97% efficiency energy-saving PM motor. It is also equipped with independent cooling fan, ensure trouble-free in all weather conditions.

5. Double filtration system, remove impurities and particles in the suction air, longer life of the air end and lubricating oil.

6. Highly automated controller, suitable for variety hard environment conditions.


Technical Parameters

Intelligent PM VSD Screw Air Compressor
ModelAir Delivery (m3/min)Power
(kW)		Noise
(dB)		Outlet
diameter		Dimension (mm)Weight
  (Kg)
8bar10bar13barL * W * H
RK10APM0.5-1.20.4-1.00.3-0.77.563G3/4700*600*860180
RK15APM0.6-1.70.5-1.60.4-1.01165G3/41000*750*1070300
RK20APM1.0-2.40.8-2.10.7-1.61565G3/41000*750*1070320
RK30APM1.5-3.71.3-3.21.1-2.82268G11350*850*1120430
RK40APM2.0-5.01.6-3.91.4-3.43068G11350*800*1110460
RK50APM2.5-6.22.2-5.62.0-4.93769G1 1/21500*1000*1350650
RK60APM3.0-7.32.4-6.02.3-5.94570G1 1/21500*1000*1350730
RK75APM3.8-9.53.5-8.73.0-7.35570G21700*1220*1550950
RK100APM5.1-12.84.5-11.33.7-9.27572G21700*1200*15501050
RK125APM6.2-15.55.4-13.65.0-12.59072G22100*1400*16501420
RK150APM7.8-19.67.1-17.86.2-15.511072DN652500*1650*19002200
RK175APM9.3-23.27.8-19.57.1-17.813272DN652500*1650*19002400
RK220APM11.1-27.89.2-23.08.0-20.016072DN803000*1900*19503650
RK250APM12.5-31.211.0-27.510.3-25.818572DN803000*1900*19503950
RK275APM13.6-34.012.2-30.511.2-28.020076DN803000*1900*19504200
RK300APM14.0-35.012.8-32.012.0-30.022076DN1003600*2200*22004600
RK350APM16.6-41.515.2-38.014.0-34.925076DN1003600*2200*22005900
RK375APM20.2-50.618.4-46.016.6-41.528082DN1003600*2200*22006000
RK420APM22.2-55.920.0-50.116.8-42.031582DN1254600*2300*24307800
RK420WPM22.2-55.920.0-50.116.8-42.031582DN1254200*2300*24307500
RK475APM26.0-65.422.0-55.118.4-46.035585DN1254600*2300*24308200
RK475WPM26.0-65.422.0-55.118.4-46.035582DN1254200*2300*24307900
