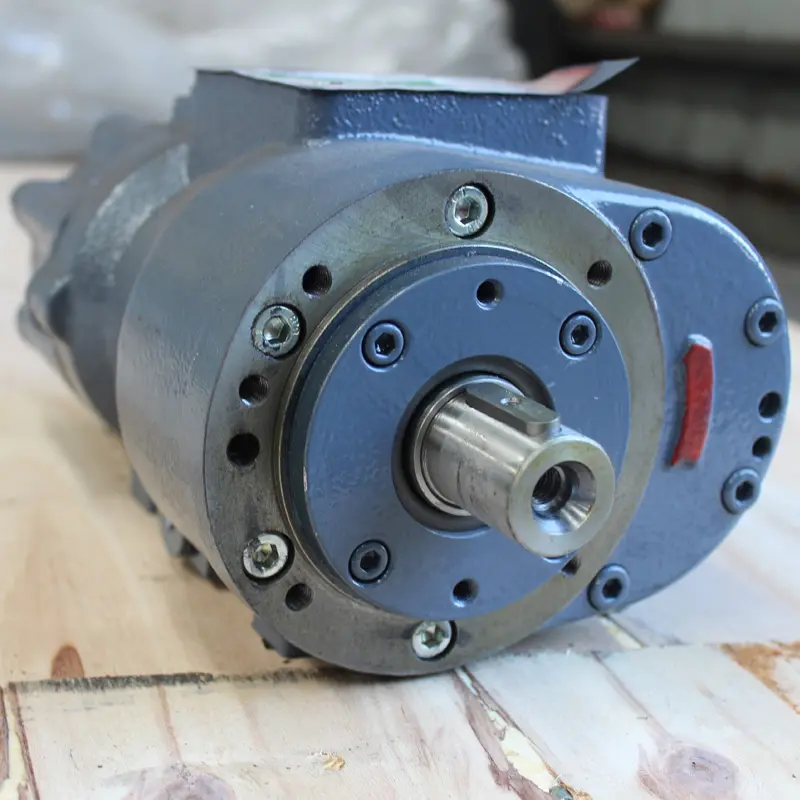

7.5kw Hanbell Air End AB-077 Screw Air Compressor head

Product Details

Product features

1. Six bearing design, long life and good stability.

2. High application pressure.

3. Market application for more than 15 years, good reputation, benchmarking with international brand heads.

Technical Parameters

Model	Power (kW)	Rotating speed (rpm)	Air Delivery (m3/min)	Shaft power (kW)	Specific power (kW/m3/min)	S.F.	Dimension(mm)	Weigh t(kg)
AB-077 (Belt)	7.5	3420	1	7.3	7.4	0.97	262180150	25
AB-077 (Belt)	11	5200	1.5	11	7.2	1	262180150	25
AB-130 (Belt)	15	3420	2	14.6	7.2	0.97	397210170	40
AB-210	18.5	2950	2.9	19.4	6.7	1.05	445250200	62
AB-240	22	2950	3.5	22.7	6.4	1.03	445261207	64
AB-350RS	30	2950	4.7	33.1	7.1	1.1	500350300	118
AB-420	37	2950	6.2	38.2	6.1	1.03	480350280	109
AB-480R	45	2950	7.1	47.5	6.7	1.05	550370299	145
AB-600R	55	2950	9.1	57.6	6.3	1.05	630350300	155
AB-780R	75	2950	11.9	73.3	6.1	0.98	650380350	195
AB-830	75	2950	12.9	80.6	6.2	1.07
AB-1030R	90	2950	14.8	95	6.4	1.08	772402350	260
AB-1200R	110	2950	19.4	115.5	5.9	1.05	810575412	378
AB-1320	132	2950	21.4	139.5	6.5	1.06	863610442	490
AB-1450R	132	2950	21.8	135.8	6.2	1.03	630485409	220
AB-1560	160	2950	23.9	151.6	6.3	0.95	900630452	550
AB-1560R	160	2950	24	151.6	6.3	0.95	900630452	550
