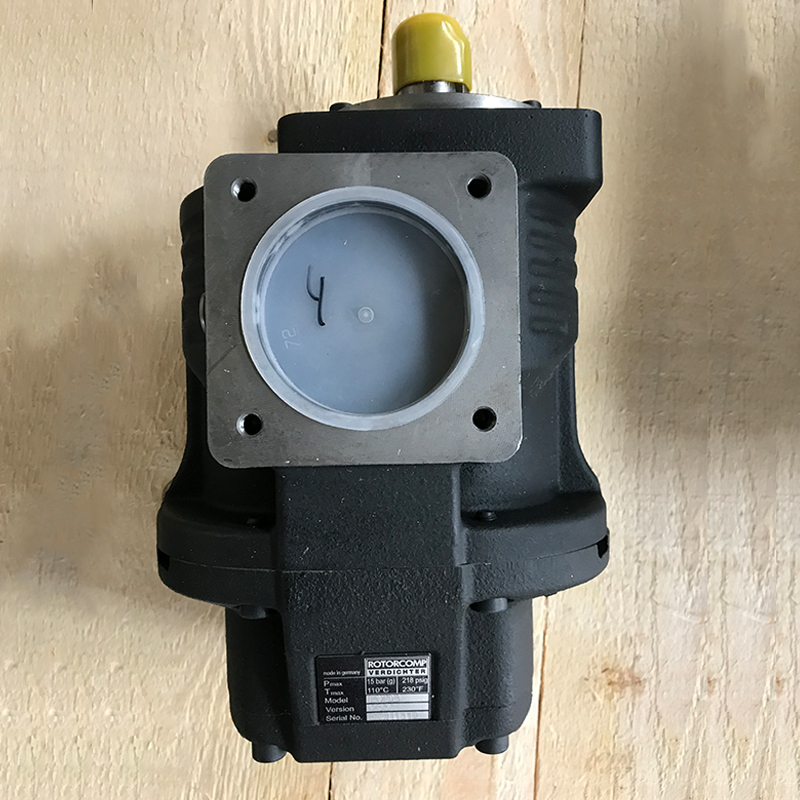

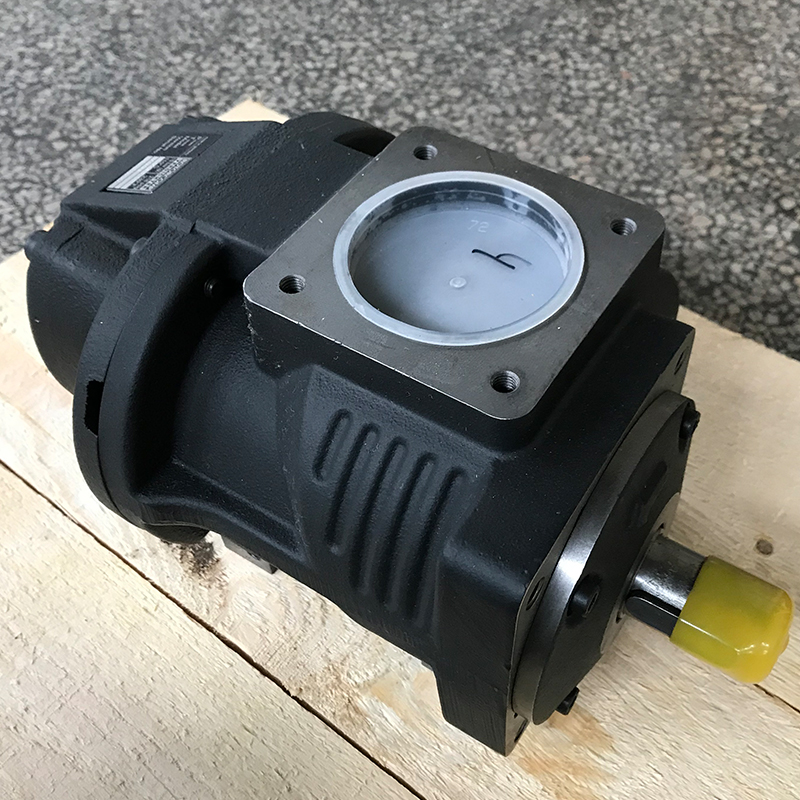

Screw Air compressor head Rotorcomp air end EVO3

Our oil-injected screw air ends create the heart of your compressor system. Used with our wide range of components, you can build the perfect compressor package with ultimate efficiency, low noise, a

  • Working Pressure:7~20[ bar ]101.5~232[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details


Product feature

1. New ROLLING PROFILE® – ultimate efficiency with reduced noise.

2. Long life cycle due to increased bearing dimensions and wear-free ROLLING PROFILE®.

3. Wide operating pressure range from 5 to 15 barg.

4. High quality manufacturing and assembling–“Made in Germany”.

5. Quality assurance–bench test of every air end before leaving our factory.

6. Easy application selection with our new ROTORCOMP® SIZING AIR software.

7. Highest flexibility for your package design.

• Suitable for all types of drive motors.

• Drive options: Belt drive, direct drive, internal gear drive.

• Base and face-flange mounting.

Technical Parameters

Model

Motor Power(min~max)

Max Flow rate

Pressure Range

Weight


kW

HP

m3/min

cfm

bar

psi

kg

EVO2

2.2~11

3~15

1.6

56

5~15

7~220

16

EVO3

5.5~18.5

7~25

2.9

102

5~15

7~220

21

EVO6

15~37

20~50

6.2

220

5~15

7~220

45

EVO9

22~55

30~75

8.4

297

5~15

7~220

69

EVO15

45~90

60~120

14.2

500

5~15

7~220

126

EVO28

75~160

100~215

26.1

920

5~15

7~220

269

EVO42

132~250

175~335

38.3

1353

5~15

7~220

470

EVO76

160~540

214~725

76

2678

3.5~17

50~250

1250
