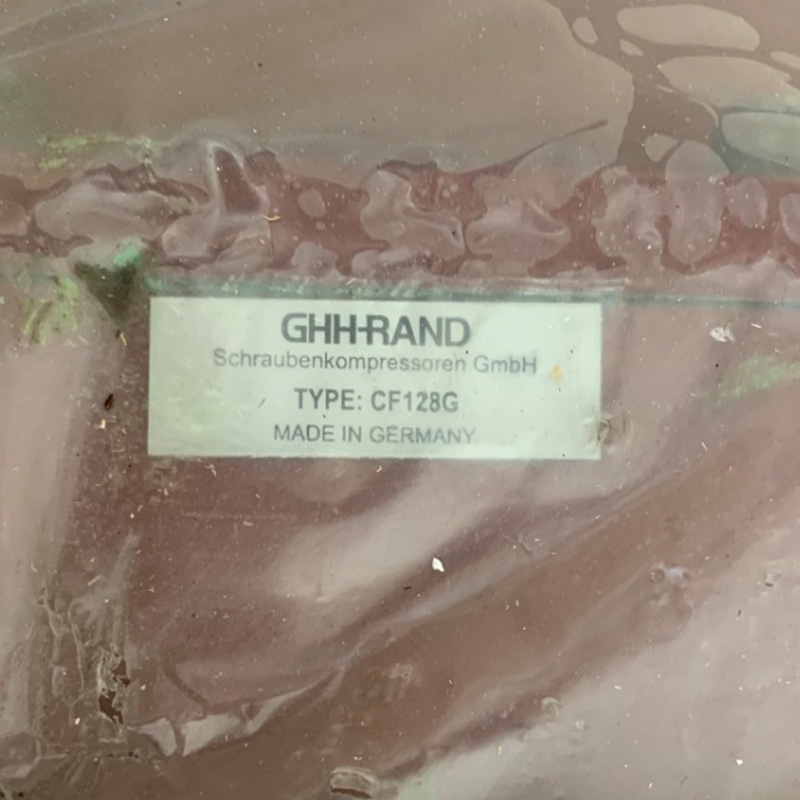

Germany Ingersoll Rand Screw air end CF128G

The CF128G is a single stage oil-injected screw compressor airend for belt drive and direct drive systems, which can be used for general industrial applications.

  • Working Pressure:5~20[ bar ]72.5~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details


Product features

1. Complete portfolio - single and double stage, direct, belt and gear driven screw compressors.

2. Maximum performance and high efficiency.

3. Compact size.

4. Suitable for continuous operation 24 hours a day in extreme and challenging conditions.

5. Low specific power demand throughout the operating range.

6. Our air ends offer exceptional efficiency across a wide speed range, making them adaptable to a diverse range of OEM applications.

Technical Parameters

ModelPower (kW)Flow  (m³/min)Working pressure
( bar)
Weight
(kg)
CE55RW15,81.771322
CE55G272.641430
OS7044,64.611543
CF75D861,36.161557
CF75G73,36.941570
CF90G585,48.8715120
CF90LG388,611.210129
CF90D3101101589
CF90LG510512.610129
CF128G19820.815280
CF128LG22228.810330
CF180R38541.415725
OS11013914.6815150
OS16329532.6515430
CF180G238541.415780
CF246G56566.613.51600
