30~40bar air compressor filter RNH-030* high pressure precision filter

Suitable for filtering solid and liquid impurities in compressed air below 4.0Mpa, high-pressure gas precision filters adopt precision manufacturing technology, fully considering the requirements of h

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

Suitable for filtering solid and liquid impurities in compressed air below 4.0Mpa, high-pressure gas precision filters adopt precision

manufacturing technology, fully considering the requirements of high-pressure technology. Made of high-grade 304, 316L stainless

steel and special coated carbon steel, it can provide 25, 5, 1 and 0.01um and activated carbon filter performance filter elements to

meet various special requirements of customers. It is designed using aerodynamic principles to ensure that the pressure drop of the

filter medium is minimized.

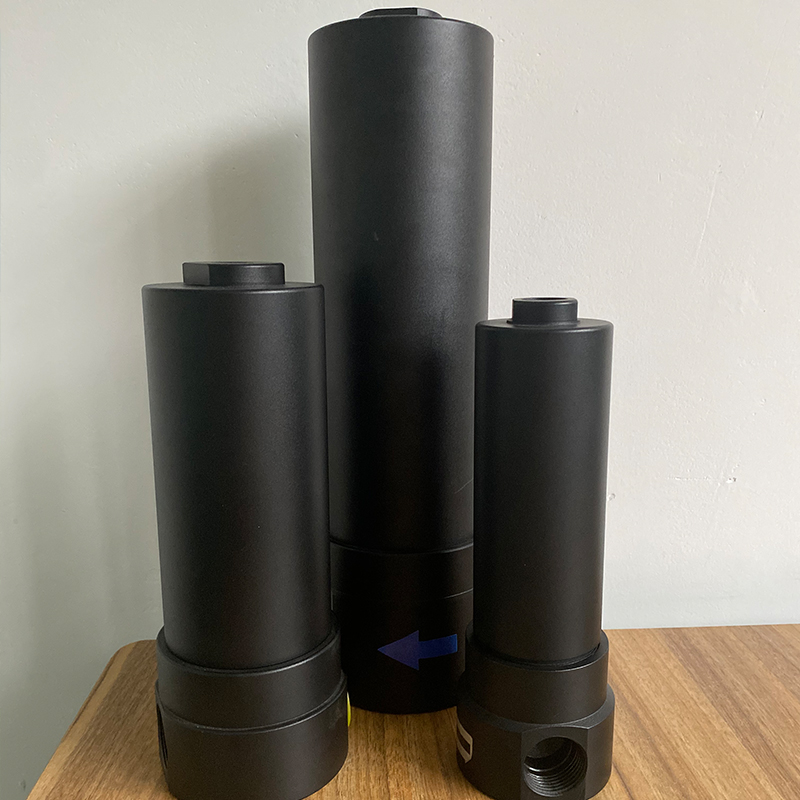

30~40bar高压碳钢 (6).jpg

Technical Parameters

Assembly model

Flow

(m³/min)

Connection size

Filter

Model

CNH-010*1 1 InchE*-16+
CNH-020*2 1 InchE*-20+
CNH-030*3 1 InchE*-24+
CNH-050*5 1.5 InchE*-28+
CNH-070*7 1.5 InchE*-32+
CNH-100*11 1.5 InchE*-36+
CNH-100*11 2 InchE*-36+
