5m3/min High Pressure Carbon Steel Filter Compressed Air Filter RNH-050*

Suitable for filtering solid and liquid impurities in compressed air below 4.0Mpa, high-pressure gas precision filters adopt precision manufacturing technology, fully considering the requirements of h

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

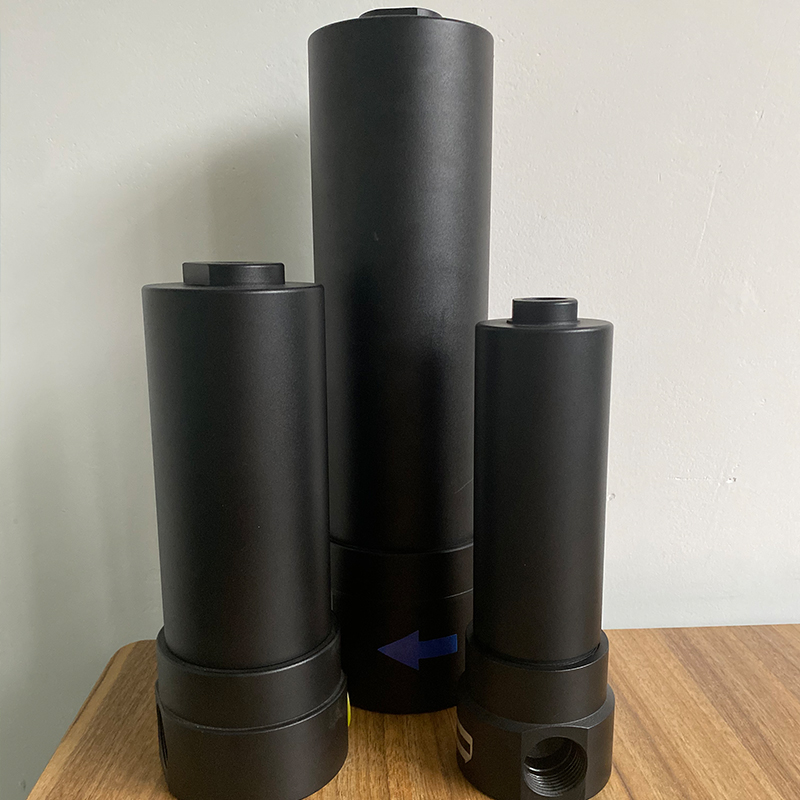

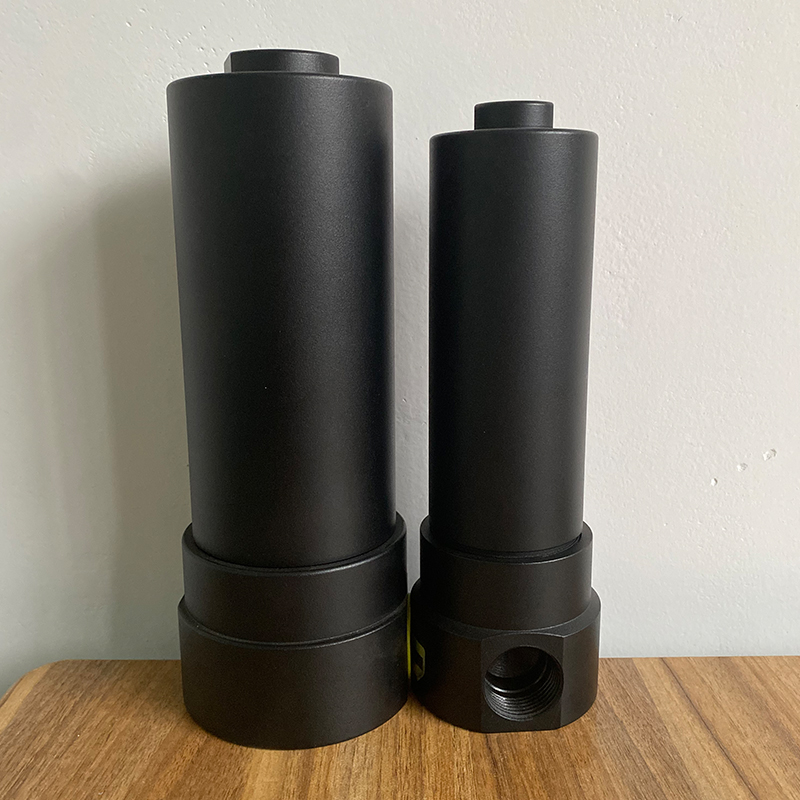

Suitable for filtering solid and liquid impurities in compressed air below 4.0Mpa, high-pressure gas precision filters adopt precision manufacturing technology, fully considering the requirements of high-pressure technology. Made of high-grade 304, 316L stainless steel and special coated carbon steel, it can provide 25, 5, 1 and 0.01um and activated carbon filter performance filter elements to meet various special requirements of customers. It is designed using aerodynamic principles to ensure that the pressure drop of the filter medium is minimized.

30~40bar高压碳钢 (6).jpg




Technical Parameters

Modelflow(m³/min)Connection sizeFilter model
RNH-010*1 1 InchE*-16+
RNH-020*2 1 InchE*-20+
RNH-030*3 1 InchE*-24+
RNH-050*5 1.5 InchE*-28+
RNH-070*7 1.5 InchE*-32+
RNH-100*11 1.5 InchE*-36+
RNH-100*11 2 InchE*-36+
