Industrial Oil Free Water Lubricated Variable Speed Oilless Screw Air Compressor

Single screw air compressor is the new type of compressor in the world. Its basic principle is that a cylindrical screw and two symmetrical plane star wheels make up meshing pairs. Usually, there are

  • Working Pressure:8~12.5[ bar ]116~182[ psig ]
  • Free Air Delivery:28.6~1535[ cfm ]0.81~43.5[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]
PRODUCT
GALLERY

DOWNLOAD DOCUMENT

Rocky catalog 2024 version Rocky RKY RKYII Portable compressor catalog Rocky High Pressure Breathing Air Compressor Catalog Rocky high precision line filter catalog

Product Details

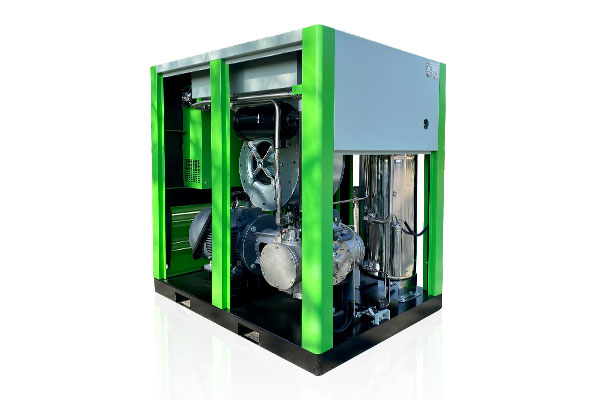

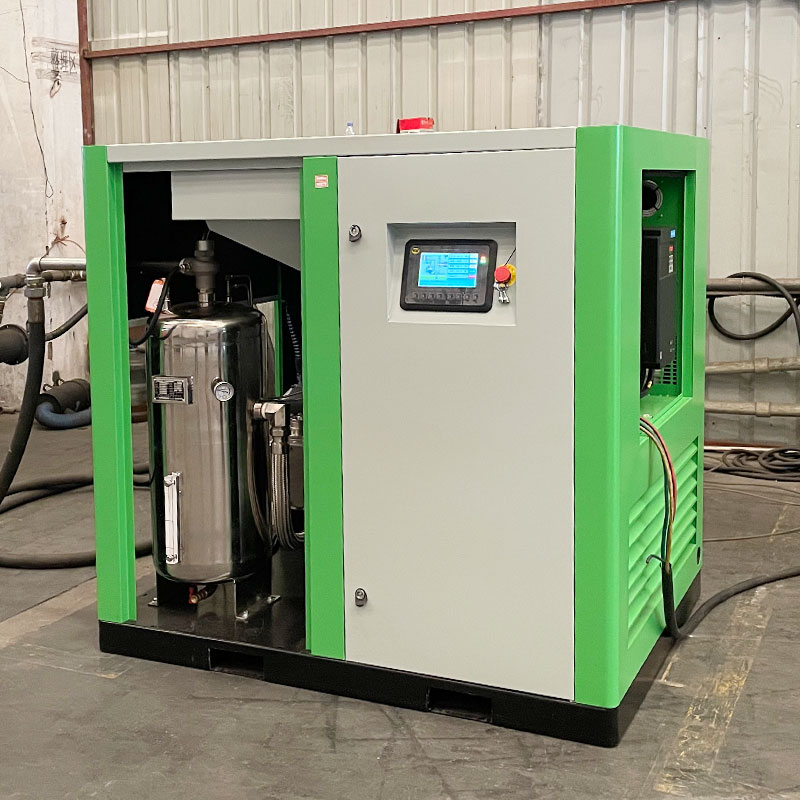

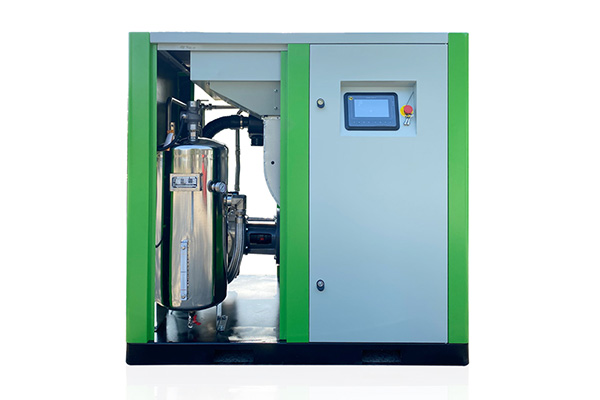

Industrial Oil Free Water Lubricated Variable Speed Oilless Screw Air Compressor

RW-37AW (15).jpg


Product feature

Optimal Water Lubricated Screw Unit

The oil-free water lubricated screw unit adopts PEEK ultra-high-strength ultra-wear-resistant molecular material and aerospace-grade all-stainless steel rotor. The system piping and housing are also made of stainless steel.

Class 0 Oil-free

Water is used for lubrication, cooling, sealing and noise reduction. 100% oil-free and pollution-free, the used water is environmentally friendly and can be drained directly.

Reliable Solenoid Valve

Danfoss and ODE solenoid valves are selected, high sensitivity & longer lifetime.

Less Consumables and Easy Operation

Air filter and water filter only. Lubricating water is automatically replenished and drained regularly.

Technical Parameters

Oil-free Water Lubricated Air Compressor
ModelAir Delivery (m3/min)Power (kW)Lubricating water amount (Liters)

Cooling

water

amount

 T/Hour

Cooling

 water

inlet/outlet

diameter

Noise dB(A)Outlet diameterDimension (mm)
8 bar10 Bar12.5 barL*W*H
RW-08A/W1.171.050.817.5102.03/4"583/4"800*800*1200
RW-11A/W1.651.421.1011262.51"603/4"1150*755*1340
RW-15A/W2.432.171.8015263.51"633/4"1150*755*1340
RW-18A/W3.132.822.0518.5304.01"651"1400*900*1450
RW-22A/W3.523.212.7822305.01"651"1400*900*1450
RW-30A/W5.124.433.6330407.01 1/2"671 1/4"1550*1150*1550(A) 1500*1150*1300(W)
RW-37A/W6.305.334.7737409.01 1/2"671 1/4"1550*1150*1550(A) 1500*1150*1300(W)
RW-45A/W7.406.305.56459010.01 1/2"682"1980*1300*1760(A) 1800*1300*1670(W)
RW-55A/W9.608.557.675512012.01 1/2"702"1980*1300*1760(A) 1800*1300*1670(W)
RW-75A/W13.0011.509.707512018.01 1/2"732"2100*1600*1900(A) 2200*1500*1800(W)
RW-90A/W14.8013.9012.609018020.01 1/2"732 1/2"2400*1600*2000(A) 2200*1500*1800(W)
RW-110A/W19.8516.6615.5611018024.02"782 1/2"3000*1700*2250(A) 2200*1500*1800(W)
RW-132A/W23.1019.9716.9013224030.02"782 1/2"3000*1700*2250(A) 2200*1500*1800(W)
RW-160W28.1125.4522.5216024035.03H80DN802700*2800*2050
RW-185W33.9729.0025.2118530038.03"80DN802700*2800*2050
RW-200W36.7532.7829.2420030042.04"80DN1002700*2800*2050
RW-220W39.6736.7529.6322036047.04"80DN1002700*2800*2050
RW-250W43.5039.3034.0025036058.04"80DN1002700*2800*2050
Note:" A" means air cooling," W" means water cooling.
