Stainless steel 304 gas and air filter sterile precision filter RF-050

The sterilizing filter is mainly a microfiltration filter element with a large specific surface area and a filtration accuracy of 0.22um or more. It is mainly used to prevent impurities and harmful ba

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

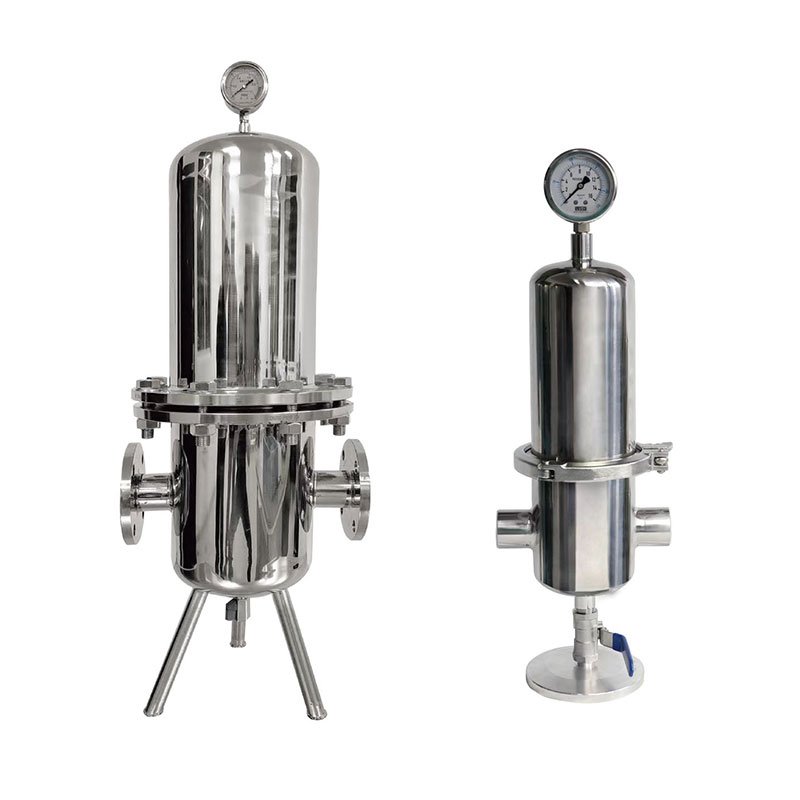

不锈钢除菌过滤器 (2).jpg

Product features

1. The sterilizing filter generally adopts a cross suspension type, which enters and exits horizontally. The multi-core filter can be designed as floor type.

2. Some application occasions are divided into pre-filter and fine filter according to the actual stacking.

3. Air flow direction: through the filter element from outside to inside

4. Regularly sterilize, 1-2 times a week or a month according to the actual use, 30 minutes each time, using clean saturated steam with a filtration accuracy of 1U to sterilize. Steam temperature < 0.3MPa, the valve opens and closes slowly.


Technical Parameters

Filter modelCapacity
M³/min
Connection sizesFilter element
model
Filter element
qty (pcs)
RF-0101-3Quick Connect/ Thread 1"226*5
RF-0504-6Quick Connect/ Thread 1"226* 10
RF-0707-10Quick Connect /Thread 1.5"226*20
RF-10015-20DN65226*20
RF-20030-35DN80226*20
RF-30040-55DN100226*20
RF-40060-75DN125226*20
RF-50080-100DN125226*20
RF-600110-120DN150226*2011
RF-700130-140DN150226*2013
RF-800150-160DN200226*2015
