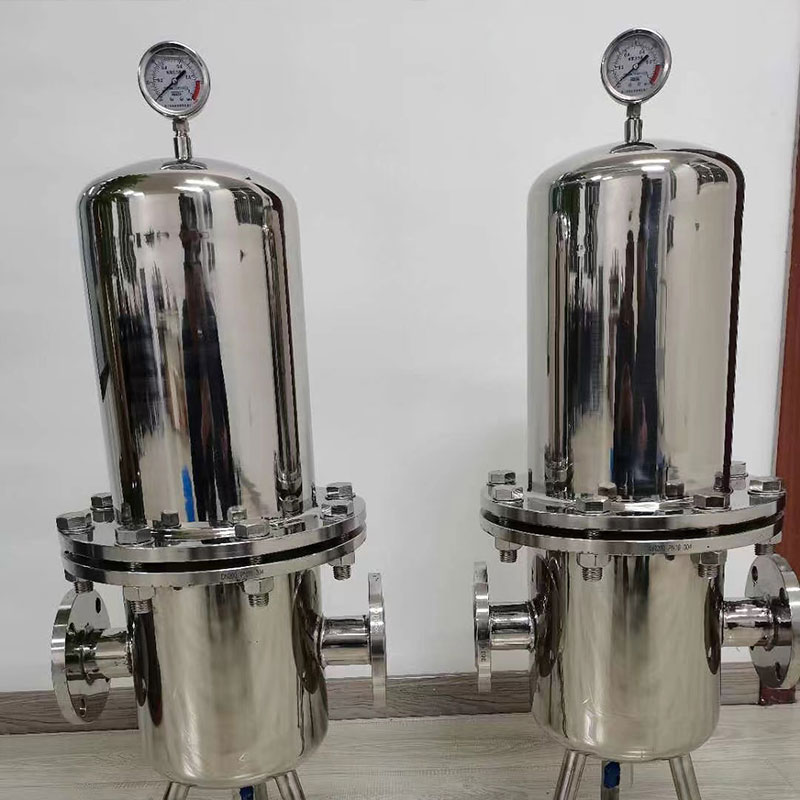

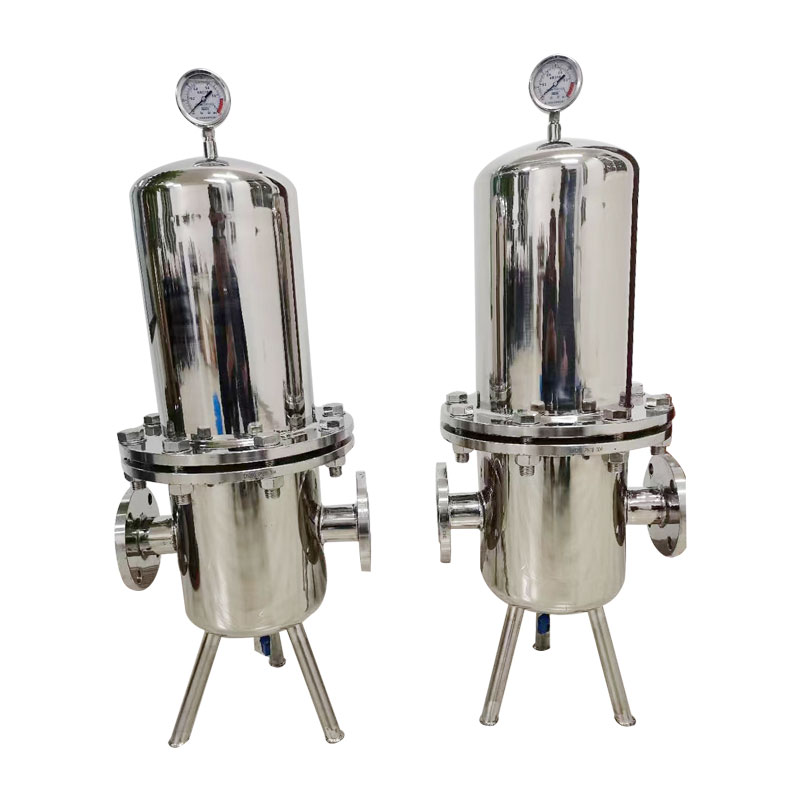

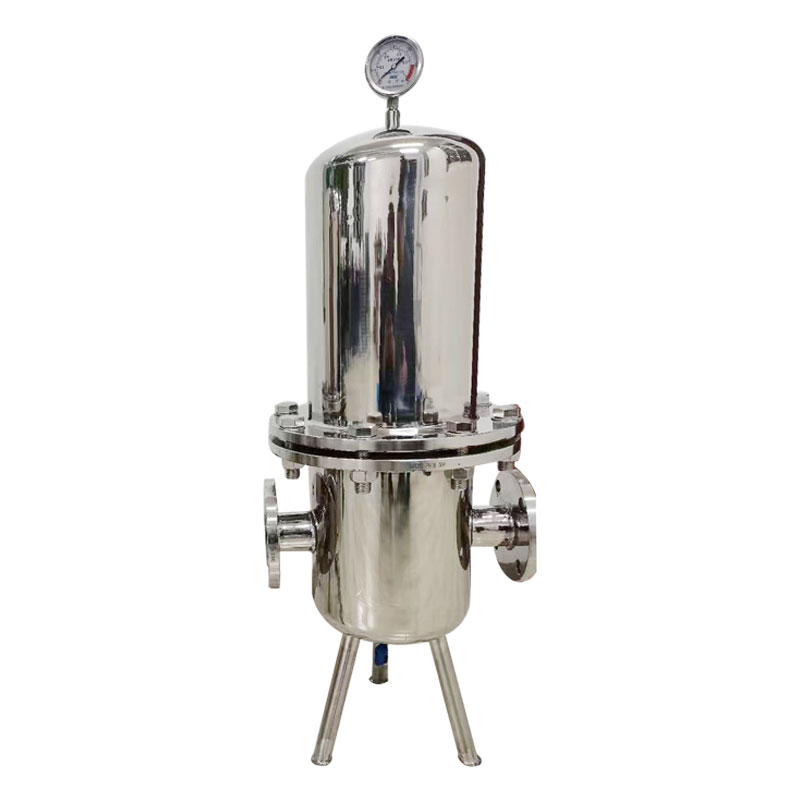

Stainless Steel Sterile PTFE Compressed Purity Filter Accessories RF-600

The sterilizing filter mainly adopts a microfiltration filter element with a large specific surface area and a filtration accuracy of 0.22um or more. It is mainly used to prevent impurities and harmfu

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:0.3~65[ cfm ]10.6~2294[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

The sterilizing filter mainly adopts a microfiltration filter element with a large specific surface area and a filtration accuracy of 0.22um or more. It is mainly used to prevent impurities and harmful bacteria in the air, production lines, and sterile rooms from causing changes in water quality, products, and sterile room environments, meeting the industrial needs of food, biochemistry, beverages, beer, medicine, electronics and other industries.

不锈钢除菌过滤器 (7).jpg

Product features
1. The sterilizing filter generally adopts a cross-hanging type with horizontal entry and exit. Multi-core filters can be designed as floor-standing.
2. In some use cases, it is divided into two types: pre-filter and fine filter according to actual needs.
3. Air flow direction: from outside to inside through the filter element.
4. Sterilize regularly, 1-2 times a week or monthly according to actual usage, 30 minutes each time, using clean saturated steam with 1U filtration accuracy. When the steam temperature is <0.3MPA, the valve opens and closes slowly.

Technical Parameters

Filter modelFlow (m3/min)Filter elementNumber of filter elementsImport and exportBarrel diameter
RF-0101-25inch11 inch inner wire + quick opening102
RF-0504-610 inch11 inch inner wire + quick opening102
RF-0707-1020 inch11.5 inch inner wire + quick opening102
RF-10015-2020 inch2DN50 flange180
RF-20030-3520 inch3DN65 flange219
RF-30040-5520 inch5DN80 flange255
RF-40060-7520 inch7DN80 flange255
RF-50080-10020 inch9DN100 flange325
RF-600110-12020 inch11DN125 flange377
RF-700130-14020 inch13DN125 flange377
RF-800150-16020 inch15DN150 flange426
