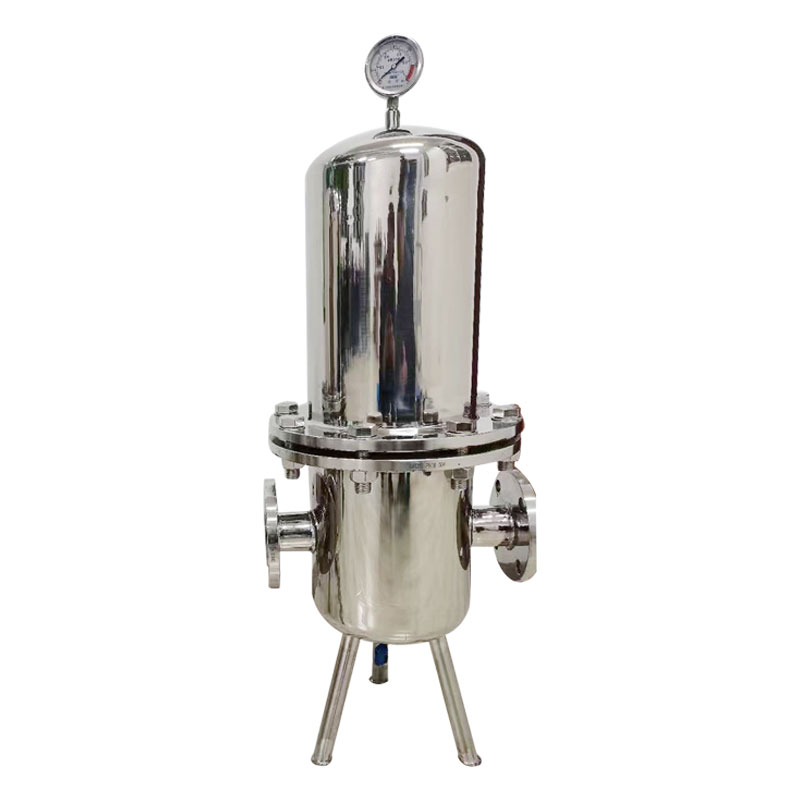

130-140m3/min stainless steel sterilizing filter RF-700

The sterilizing filter mainly adopts a microfiltration filter element with a large specific surface area and a filtration accuracy of 0.22um or more. It is mainly used to prevent impurities and harmfu

  • Working Pressure:6~20[ bar ]87~290[ psig ]
  • Free Air Delivery:10.6~2294[ cfm ]0.3~65[ m3/min ]
  • Working Power:7.5~250[ kw ]10~350[ hp ]

Product Details

不锈钢除菌过滤器 (7).jpg

Product features

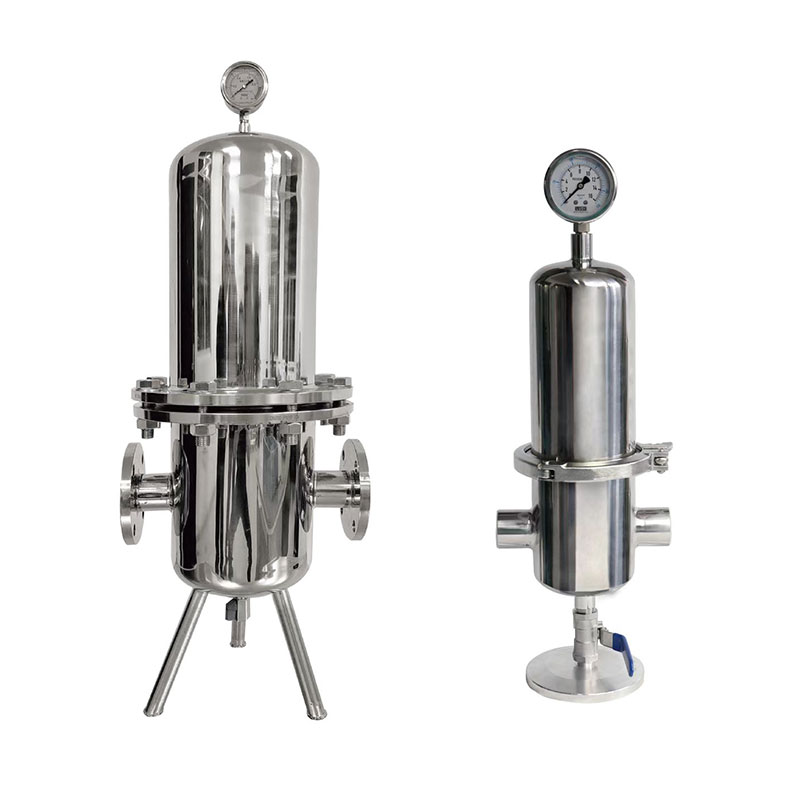

1. The sterilizing filter generally adopts a cross-hanging type with horizontal entry and exit. Multi-core filters can be designed as floor-standing.
2. In some use cases, it is divided into two types: pre-filter and fine filter according to actual needs.
3. Air flow direction: from outside to inside through the filter element.
4. Sterilize regularly, 1-2 times a week or monthly according to actual usage, 30 minutes each time, using clean saturated steam with 1U filtration accuracy. When the steam temperature is <0.3MPA, the valve opens and closes slowly.

Technical Parameters

Filter modelFlow (m3/min)Filter elementNumber of filter elementsImport and exportBarrel diameter
RF-0101-25inch11 inch inner wire + quick opening102
RF-0504-610 inch11 inch inner wire + quick opening102
RF-0707-1020 inch11.5 inch inner wire + quick opening102
RF-10015-2020 inch2DN50 flange180
RF-20030-3520 inch3DN65 flange219
RF-30040-5520 inch5DN80 flange255
RF-40060-7520 inch7DN80 flange255
RF-50080-10020 inch9DN100 flange325
RF-600110-12020 inch11DN125 flange377
RF-700130-14020 inch13DN125 flange377
RF-800150-16020 inch15DN150 flange426
